ISO7842FDWR - Texas Instruments

Description: Digital Isolator Logic 4-CH 100Mbps Automotive 16-Pin SOIC T/R

Download ISO7842FDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

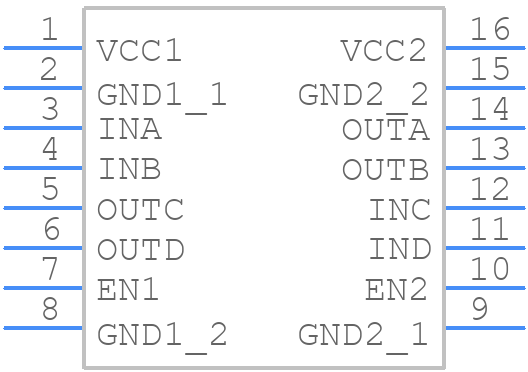

ISO7842FDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7842FDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B2021
click to zoom
3D Models
ISO7842FDWR - Texas Instruments - 3D model - Small Outline Packages - DW0016B2021
click to zoom

ISO7842FDWR Details

  • Manufacturer Part Number:

    ISO7842FDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7842FDWR Frequently Asked Questions (FAQs)

  • The maximum data rate is 150 Mbps, but it can be limited by the capacitance of the isolation barrier and the signal integrity of the system.
  • To ensure reliable operation, follow the recommended layout and routing guidelines, use a low-ESR capacitor for the VCC1 and VCC2 pins, and ensure the input signals are within the recommended common-mode voltage range.
  • The ISO7842FDWR can isolate up to 2500 Vrms for 1 minute, and 1500 Vrms continuous, but the maximum working voltage depends on the specific application and safety requirements.
  • Power sequencing is critical; ensure VCC1 and VCC2 are powered up simultaneously, and the input signals are stable before enabling the device. A soft-start circuit can help with power-up sequencing.
  • Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure the isolation barrier is not compromised by vias or traces crossing the barrier.
