ISOSD61TR - STMicroelectronics

Description: 16-bit isolated Sigma-Delta modulator, single-ended and LVDS interfaces

Download ISOSD61TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

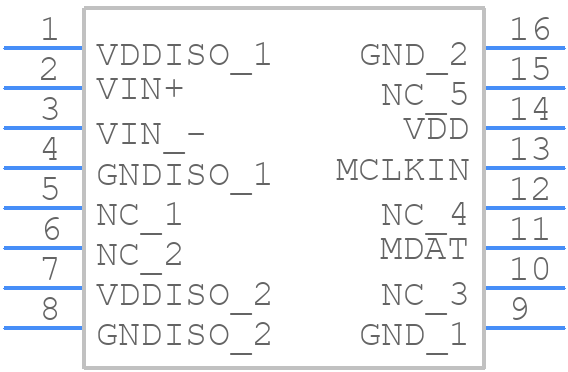

ISOSD61TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ISOSD61TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - M25P16_SO16W
click to zoom
3D Models
ISOSD61TR - STMicroelectronics - 3D model - Small Outline Packages - M25P16_SO16W
click to zoom

ISOSD61TR Details

  • Manufacturer Part Number:

    ISOSD61TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog Input Voltage-Max:

    0.2 V

  • Analog Input Voltage-Min:

    -0.2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.004577%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Sample Rate:

    25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ISOSD61TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ISOSD61TR is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • To ensure reliable operation of the ISOSD61TR in high-vibration environments, it's essential to follow proper PCB design and layout guidelines, use a robust mounting mechanism, and consider adding mechanical dampening or shock-absorbing materials to the device. Additionally, ensure that the device is properly soldered and secured to the PCB.
  • The recommended power-up sequence for the ISOSD61TR is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal voltage regulators and bias circuits are properly initialized before the device starts operating.
  • To troubleshoot issues with the ISOSD61TR's digital output signals, first verify that the device is properly powered and configured. Check the output signal levels and timing using an oscilloscope or logic analyzer. Ensure that the output signals are not loaded excessively, and that the PCB layout is optimized for signal integrity. If issues persist, consult the datasheet and application notes for guidance on signal conditioning and termination.
  • The ISOSD61TR is not specifically designed or qualified for radiation-hardened applications. If you need a radiation-hardened device, you should consider using a different component that is specifically designed and tested for such applications. Consult with STMicroelectronics or a qualified radiation-hardening expert for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISOSD61TR Overview

Use the download button to access the ISOSD61TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOSD, or try a keyword search, such as Analog to Digital Converters
