ISOW7744DFMR - Texas Instruments

Description: Digital Isolators Low-emissions, low-ripple, quad-channel, 0/4, reinforced digital isolator with integrated power

Download ISOW7744DFMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

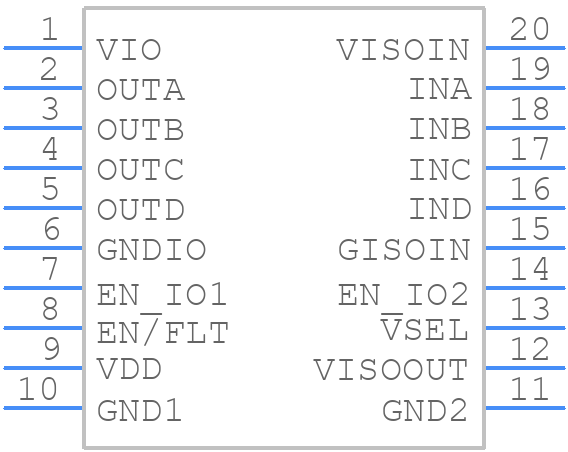

ISOW7744DFMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISOW7744DFMR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DFM0020A
click to zoom
3D Models
ISOW7744DFMR - Texas Instruments - 3D model - Small Outline Packages - DFM0020A
click to zoom

ISOW7744DFMR Details

  • Manufacturer Part Number:

    ISOW7744DFMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.83 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISOW7744DFMR Frequently Asked Questions (FAQs)

  • The ISOW7744DFMR can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application and system design.
  • The ISOW7744DFMR has built-in common-mode chokes and EMI filters to help reject common-mode transients and EMI, ensuring reliable data transmission in noisy environments.
  • The maximum cable length supported by the ISOW7744DFMR depends on the specific application and system design, but it can support cable lengths up to 100 meters or more with proper design and termination.
  • The ISOW7744DFMR uses a proprietary isolation technology to provide galvanic isolation between the input and output sides, allowing it to handle voltage differences up to 4000 Vrms and ensuring safe and reliable operation.
  • The ISOW7744DFMR has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and commercial applications.
