A good PCB layout for the ISOW7841DWER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure reliable data transmission, ensure that the input signal is within the recommended voltage range, use a suitable oscillator or clock source, and implement error detection and correction mechanisms in your system design.
To minimize EMI and RFI, use a shielded enclosure, keep the ISOW7841DWER away from noise sources, use a common-mode choke or ferrite bead on the power supply lines, and ensure proper grounding and shielding of the PCB.
Choose an oscillator or clock source with a frequency range compatible with the ISOW7841DWER, consider the required accuracy and stability, and ensure the oscillator or clock source can drive the required capacitive load.
Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal pad layout and connection guidelines to minimize thermal resistance and prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7841DWER Overview

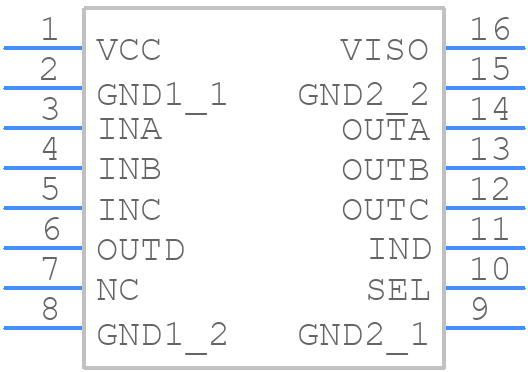

Use the download button to access the ISOW7841DWER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
