Texas Instruments provides a recommended PCB layout in the ISOW7841FAQDWERQ1 datasheet, which includes guidelines for trace routing, component placement, and thermal management. Additionally, it's recommended to follow general high-speed PCB design principles, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider the thermal management of the device, using heat sinks or thermal pads if necessary, and ensure that the PCB design takes into account thermal expansion and contraction.
To minimize EMI and RFI, follow proper PCB layout and design practices, such as using a solid ground plane, shielding, and filtering. Additionally, consider the use of EMI filters, ferrite beads, or common-mode chokes to reduce emissions. Texas Instruments also provides guidance on EMI and RFI mitigation in the ISOW7841FAQDWERQ1 datasheet and application notes.
To troubleshoot common issues, start by reviewing the datasheet and application notes for guidance on signal integrity and power supply noise. Use oscilloscopes and signal analyzers to measure signal quality and identify potential issues. Check for proper PCB layout, component selection, and power supply decoupling. Consult Texas Instruments' support resources, such as the E2E forum, for additional guidance and troubleshooting tips.
When using the ISOW7841FAQDWERQ1 in a high-reliability or safety-critical application, consider the device's reliability and failure rates, as well as its compliance with relevant industry standards (e.g., IEC 61508, ISO 26262). Ensure that the device is properly derated, and that the system design includes redundancy, error detection, and correction mechanisms to mitigate potential failures. Consult Texas Instruments' documentation and support resources for guidance on using the ISOW7841FAQDWERQ1 in such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7841FAQDWERQ1 Overview

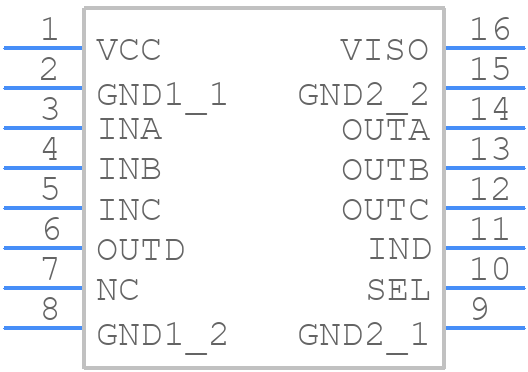

Use the download button to access the ISOW7841FAQDWERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
