ISP3010-UX-ST - Insight SIP

Description: Multiprotocol Modules ISP3010-UX nRF52832 BLE 5 Module

Download ISP3010-UX-ST Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ISP3010-UX-ST model

Email notifications will be applied after download.

Send part feedback

Symbol

ISP3010-UX-ST - Insight SIP - PCB symbol

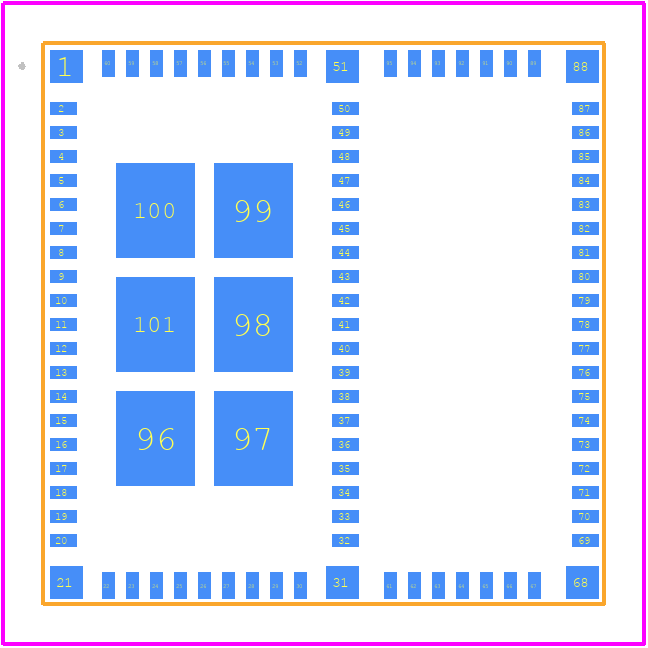

PCB Footprints

ISP3010-UX-ST - Insight SIP PCB footprint - Other - Other - 14.00 x 14.00 x 1.56 mm, 101-Pad LGA Package

3D Models

ISP3010-UX-ST - Insight SIP - 3D model - Other - 14.00 x 14.00 x 1.56 mm, 101-Pad LGA Package

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISP3010-UX-ST
Part Number ISP3010-UX-ST
Manufacturer Insight SIP
Pin Count 101
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 14.00 x 14.00 x 1.56 mm, 101-Pad LGA Package
Released Date Sep 14, 2023
Last Modified Date Sep 14, 2023 7:03 AM UTC
Pinout / Pin List Click Here (Member Only)

ISP3010-UX-ST Details

Manufacturer Part Number:
ISP3010-UX-ST
Manufacturer:
Insight SiP

Trust Checks

Community Provided

System Verified

Community Approved

ISP3010-UX-ST Overview

Use the download button to access the ISP3010-UX-ST schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISP30, or try a keyword search, such as Optocoupler
