ISP321-4XSM - Isocom

Description: OPTOCOUPLER, SMDIP-16, QUAD TR O/P

Download ISP321-4XSM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

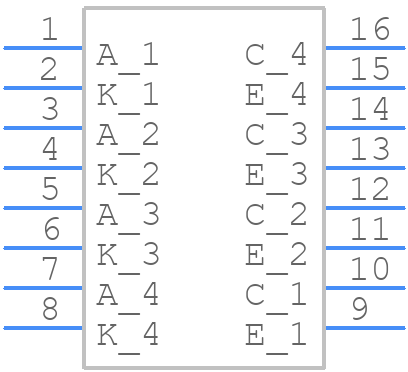

ISP321-4XSM - Isocom - PCB symbol
click to zoom
PCB Footprints

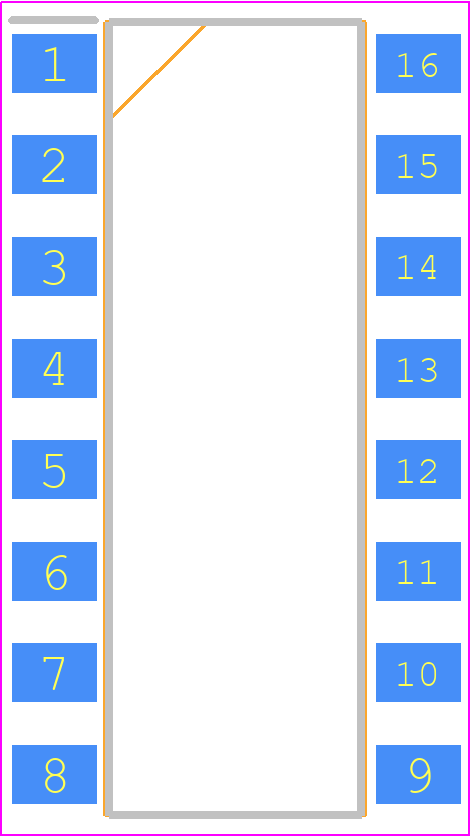

ISP321-4XSM - Isocom PCB footprint - Small Outline Packages - Small Outline Packages - 16 Pin Surface Mount
click to zoom

ISP321-4XSM Details

  • Manufacturer Part Number:

    ISP321-4XSM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT, PLASTIC PACKAGE-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    7.5

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

ISP321-4XSM Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Isocom Components' application note AN-001, which provides detailed guidelines for optimal PCB design and assembly.
  • Follow the recommended soldering profile and assembly guidelines provided in the datasheet, and ensure that the PCB is designed with adequate thermal relief and clearance around the component.
  • The ISP321-4XSM is rated for operation from -40°C to +125°C, but it's recommended to derate the component's performance at extreme temperatures. Consult the datasheet for specific derating guidelines.
  • Yes, the ISP321-4XSM is designed to withstand moderate vibration and shock. However, it's essential to follow proper PCB design and assembly guidelines to ensure the component's reliability in such environments.
  • Consult the Isocom Components' troubleshooting guide, which provides step-by-step procedures for identifying and resolving common issues. Additionally, ensure that the component is properly soldered and assembled, and that the PCB design meets the recommended guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISP321-4XSM Overview

Use the download button to access the ISP321-4XSM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISP32, or try a keyword search, such as Optocoupler
