ISP824X - Isocom

Description: Isocom ISP824X AC Input Phototransistor Output Dual Optocoupler, Through Hole, 8-Pin PDIP

Download ISP824X Model
Schematic

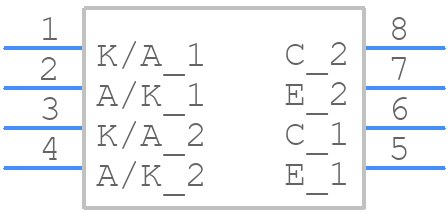

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISP824X - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8
click to zoom
3D Models
ISP824X - Isocom  - 3D model - Dual-In-Line Packages - PDIP-8
click to zoom

ISP824X Details

  • Manufacturer Part Number:

    ISP824X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN

ISP824X Frequently Asked Questions (FAQs)

  • A good PCB layout for ISP824X involves keeping the input and output tracks separate, using a solid ground plane, and minimizing track lengths and widths to reduce parasitic inductance and capacitance. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of ISP824X in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The limited output current of ISP824X means that it's not suitable for applications that require high output currents. To work around this limitation, consider using an external amplifier or buffer to boost the output current, or selecting a different device that can provide the required output current.
  • To troubleshoot ISP824X-related issues, start by verifying that the device is properly powered and that the input and output signals are within the recommended operating ranges. Use an oscilloscope to check for signal integrity and noise, and consult the datasheet for guidance on troubleshooting common issues such as oscillation or instability.
  • Yes, ISP824X is a high-frequency device that can be susceptible to electromagnetic interference (EMI). To minimize EMI/EMC issues, use proper shielding, keep the device away from other noise-sensitive components, and follow good PCB layout practices such as using a solid ground plane and minimizing track lengths and widths.
