ISP845X - Isocom

Description: Quad opto coupler,ISP845X DIP16 5300Vac Isocom ISP845X DC Input Darlington Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download ISP845X Model

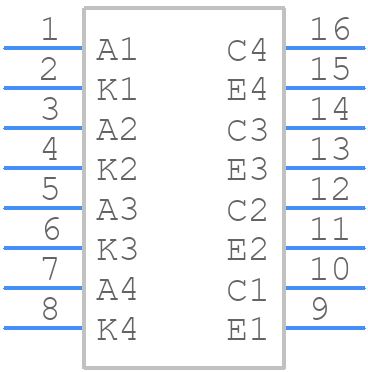

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

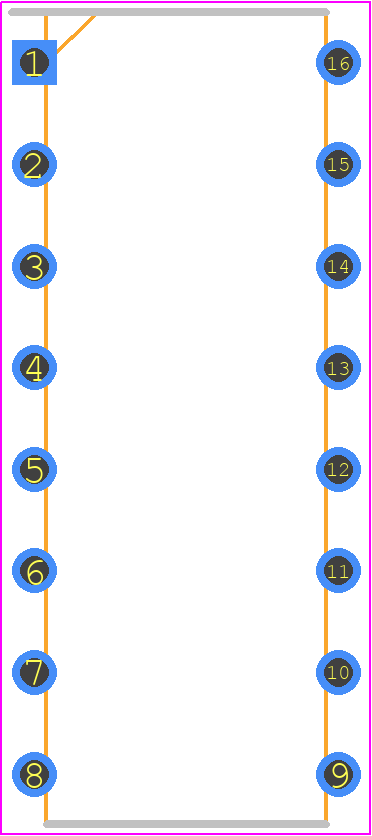

PCB Footprints
ISP845X - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ISP845X-
click to zoom
3D Models
ISP845X - Isocom  - 3D model - Dual-In-Line Packages - ISP845X-
click to zoom

ISP845X Details

  • Manufacturer Part Number:

    ISP845X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    800%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN
