ISQ201XSM - Isocom

Description: OPTOCOUPLER, SMDIP-16, QUAD TR O/P; No. of Channels:4 Channel; Optocoupler Case Style:Surface Mount DIP; No. of Pins:16Pins; Forward Current If Max:50mA; Isolation Voltage:5.3kV; CTR Min:75%; Collector Emitter Voltage V(br)ceo:70V RoHS Compliant: Yes

Download ISQ201XSM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

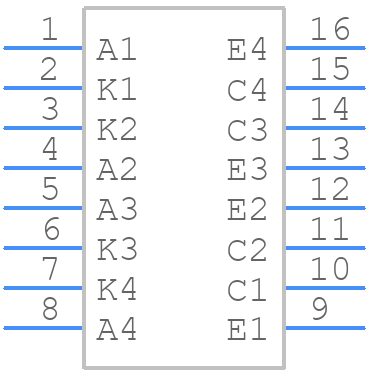

ISQ201XSM - Isocom - PCB symbol
click to zoom
PCB Footprints

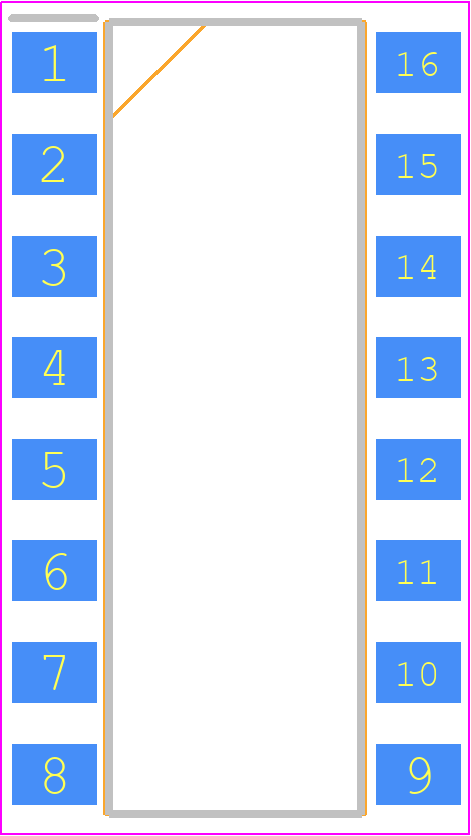

ISQ201XSM - Isocom PCB footprint - Small Outline Packages - Small Outline Packages - ISQ201XSM
click to zoom

ISQ201XSM Details

  • Manufacturer Part Number:

    ISQ201XSM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    7.5

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    75%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN
