ISQ203 - Isocom

Description: Isocom ISQ203 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download ISQ203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

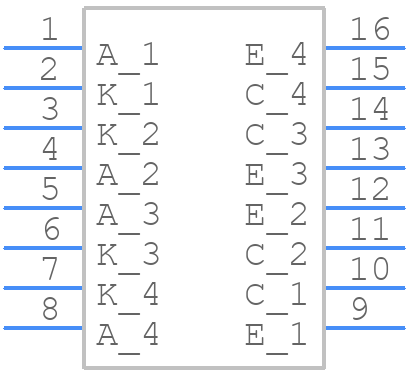

ISQ203 - Isocom - PCB symbol
click to zoom
PCB Footprints

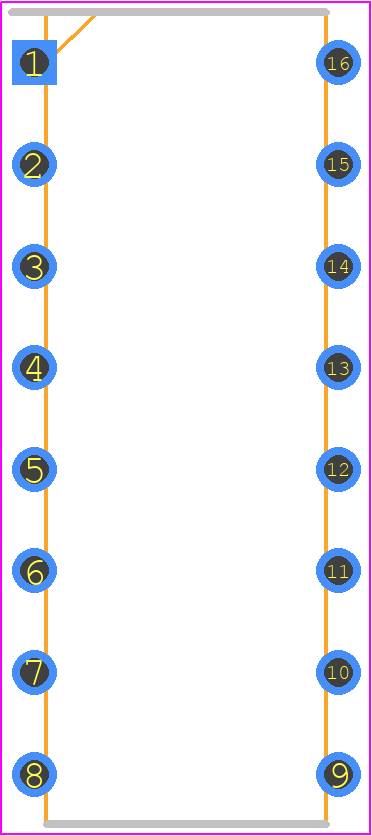

ISQ203 - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ISP621-4X1
click to zoom
3D Models
ISQ203 - Isocom - 3D model - Dual-In-Line Packages - ISP621-4X1
click to zoom

ISQ203 Details

  • Manufacturer Part Number:

    ISQ203

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    225%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN
