IWR6843ARQGALPR - Texas Instruments

Description: RF System on a Chip - SoC Single-chip 60-GHz to 64-GHz intelligent mmWave sensor with integrated antenna on package (AoP)

Download IWR6843ARQGALPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IWR6843ARQGALPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

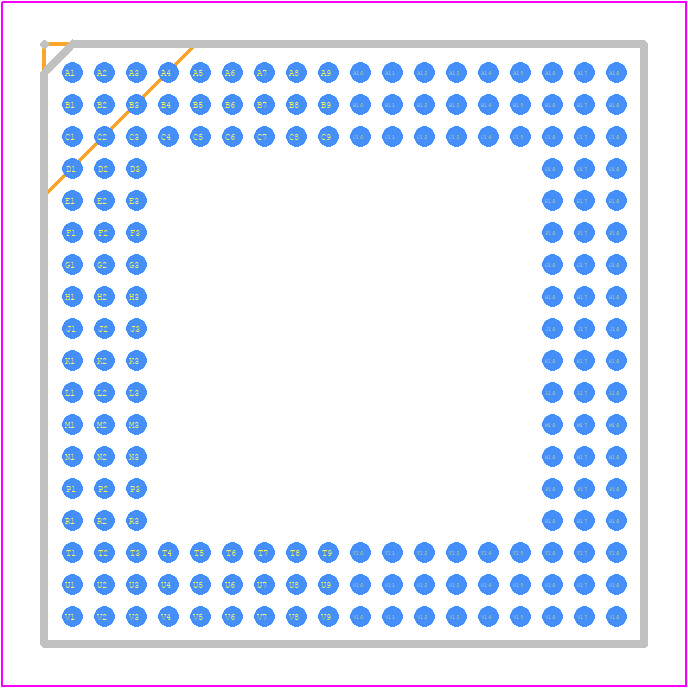

IWR6843ARQGALPR - Texas Instruments PCB footprint - BGA - BGA - ALP0180A-1
click to zoom
3D Models
IWR6843ARQGALPR - Texas Instruments - 3D model - BGA - ALP0180A-1
click to zoom

IWR6843ARQGALPR Details

  • Manufacturer Part Number:

    IWR6843ARQGALPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.F

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 60 - 64 GHz

  • Body Height:

    0.475 mm

  • Body Length or Diameter:

    15 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    180

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.45-1.35V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    BGA180,18X18,32

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MMWAVE RADAR SENSOR MODULE

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

IWR6843ARQGALPR Frequently Asked Questions (FAQs)

  • The maximum range of the IWR6843ARQGALPR is approximately 10 meters (33 feet) with a resolution of up to 4 cm (1.6 inches).
  • The IWR6843ARQGALPR uses a combination of frequency modulation and pulse compression to mitigate multipath interference. Additionally, the device's built-in signal processing algorithms help to reduce the effects of multipath.
  • The IWR6843ARQGALPR has a typical power consumption of around 1.4 W in active mode and 10 μA in standby mode.
  • Yes, the IWR6843ARQGALPR is designed to operate in a wide range of temperatures (-40°C to 85°C) and can be used in outdoor environments, but it may require additional protection from environmental factors such as moisture and extreme temperatures.
  • The IWR6843ARQGALPR uses a frequency-hopping spread spectrum (FHSS) technique to minimize interference from other radar systems. Additionally, the device's adaptive frequency selection algorithm helps to avoid interference from other devices.
