IXYP50N65C3 - LITTELFUSE

Description: XPTTM 650V IGBT GenX3TM

Download IXYP50N65C3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IXYP50N65C3 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

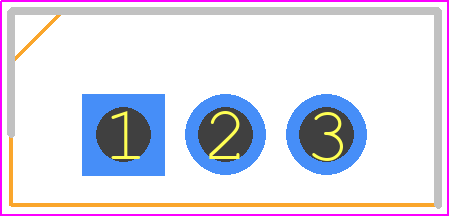

IXYP50N65C3 - LITTELFUSE PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220 (IXTP)_2023
click to zoom
3D Models
IXYP50N65C3 - LITTELFUSE - 3D model - Transistor Outline, Vertical - TO-220 (IXTP)_2023
click to zoom

IXYP50N65C3 Details

  • Manufacturer Part Number:

    IXYP50N65C3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.35

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    132 A

  • Collector-Emitter Voltage-Max:

    650 V

  • Configuration:

    SINGLE

  • Gate-Emitter Thr Voltage-Max:

    6 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    600 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    145 ns

  • Turn-on Time-Nom (ton):

    56 ns

  • VCEsat-Max:

    2.1 V
