IXYT30N450HV - LITTELFUSE

Description: IGBT 4500V 60A 430W Surface Mount TO-268HV (IXFT)

Download IXYT30N450HV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

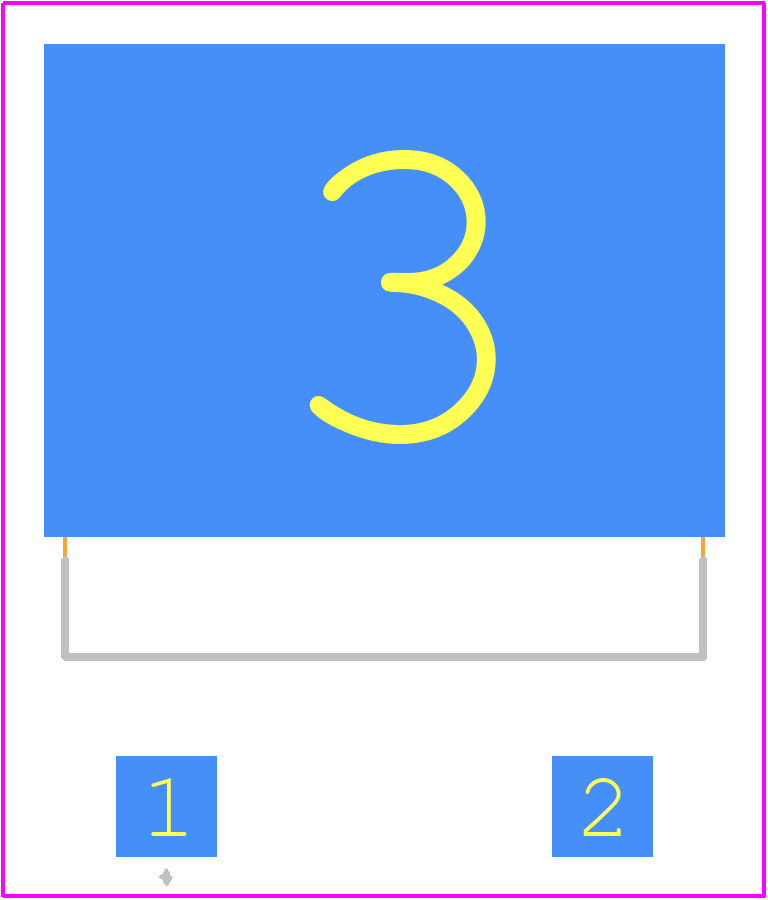

PCB Footprints
IXYT30N450HV - LITTELFUSE PCB footprint - Other - Other - TO-268HV (IXYT)_2021
click to zoom
3D Models
IXYT30N450HV - LITTELFUSE  - 3D model - Other - TO-268HV (IXYT)_2021
click to zoom

IXYT30N450HV Details

  • Manufacturer Part Number:

    IXYT30N450HV

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    60 A

  • Collector-Emitter Voltage-Max:

    4500 V

  • Configuration:

    SINGLE

  • Gate-Emitter Thr Voltage-Max:

    5 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JEDEC-95 Code:

    TO-268AA

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    430 W

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    1545 ns

  • Turn-on Time-Nom (ton):

    632 ns

  • VCEsat-Max:

    3.9 V

IXYT30N450HV Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the IXYT30N450HV is a TO-247 package with a minimum pad size of 6.5mm x 4.5mm and a thermal pad size of 10mm x 10mm.
  • Yes, the IXYT30N450HV is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the device's switching losses, thermal performance, and layout to ensure reliable operation.
  • To ensure proper cooling, provide a sufficient heat sink with a thermal resistance of less than 1°C/W, and ensure good thermal contact between the device and the heat sink. Also, consider the airflow and ambient temperature in your design.
  • The maximum allowed case temperature for the IXYT30N450HV is 150°C, but it's recommended to keep the case temperature below 125°C for reliable operation and to ensure the device's lifespan.
  • Yes, you can parallel multiple IXYT30N450HV devices, but it's crucial to ensure that the devices are properly matched, and the gate drive and layout are designed to minimize current imbalance and oscillations.
