Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the JL723SCA is placed near the analog input pins to reduce noise and improve performance.
The JL723SCA can deliver high output currents, which can cause overheating if not properly managed. Ensure your PCB design includes adequate thermal management, such as heat sinks, thermal vias, and sufficient copper area. Additionally, consider using current-limiting resistors or external current-sensing resistors to prevent overheating.
The JL723SCA's output voltage noise can be filtered using a combination of capacitors and resistors. A recommended approach is to use a low-pass filter with a capacitor (e.g., 10uF) in parallel with a resistor (e.g., 10Ω) to ground. This filter can be placed close to the output pins to reduce noise and improve overall performance.
To ensure accuracy and linearity, it's essential to follow the recommended operating conditions, such as supply voltage, temperature range, and input voltage range. Additionally, calibrate the device using the internal calibration mechanism or external calibration resistors. Regularly check the device's performance and adjust the calibration as needed.
Common sources of error in the JL723SCA's measurements include noise, temperature drift, and non-linearity. To minimize these errors, ensure proper PCB design, use adequate filtering, and maintain a stable operating temperature. Additionally, consider using external error-correction mechanisms, such as temperature compensation or software-based corrections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JL723SCA Overview

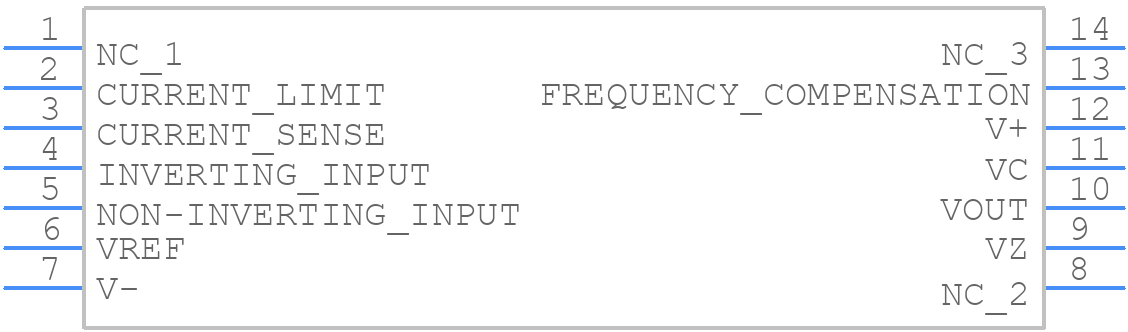

Use the download button to access the JL723SCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JL723,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
