JM38510/17103BCA - Texas Instruments

Description: JM38510/17103BCA

Download JM38510/17103BCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

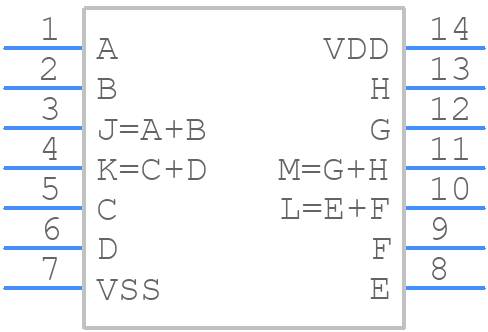

JM38510/17103BCA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
JM38510/17103BCA - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J0014A
click to zoom
3D Models
JM38510/17103BCA - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - J0014A
click to zoom

JM38510/17103BCA Details

  • Manufacturer Part Number:

    JM38510/17103BCA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.56 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR GATE

  • Max I(ol):

    0.0015 A

  • Number of Functions:

    3

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.00075 mA

  • Prop. Delay@Nom-Sup:

    350 ns

  • Propagation Delay (tpd):

    250 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Screening Level:

    MIL-M-38510 Class B

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    6.67 mm

JM38510/17103BCA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for JM38510/17103BCA is -55°C to 125°C, although it can withstand storage temperatures from -65°C to 150°C.
  • To ensure reliability, follow proper handling and storage procedures, use a clean and controlled environment, and adhere to recommended soldering and assembly techniques. Additionally, consider using radiation-hardened or radiation-tolerant versions of the device for space or high-radiation applications.
  • JM38510/17103BCA is not inherently radiation-hardened, so it may be susceptible to single-event effects (SEEs) and total ionizing dose (TID) effects in radiation-rich environments. Consider using radiation-hardened or radiation-tolerant versions of the device or implementing radiation mitigation strategies in your design.
  • JM38510/17103BCA has a maximum operating voltage of 15V, so it is not suitable for high-voltage applications. If you need a device that can handle higher voltages, consider using a different part number or consulting with a Texas Instruments representative.
  • Start by reviewing the datasheet and application notes to ensure proper usage and configuration. Then, use standard debugging techniques such as signal tracing, voltage measurement, and logic analysis to identify the root cause of the issue. If necessary, consult with a Texas Instruments representative or a qualified engineer for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JM38510/17103BCA Overview

Use the download button to access the JM38510/17103BCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JM385, or try a keyword search, such as Gates
