JM38510/17401BCA - Texas Instruments

Description: JM38510/17401BCA

Download JM38510/17401BCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

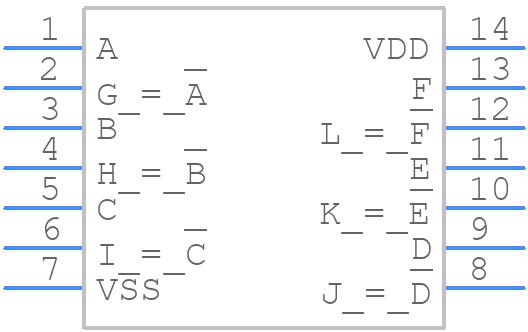

Symbol
JM38510/17401BCA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
JM38510/17401BCA - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J0014A
click to zoom
3D Models
JM38510/17401BCA - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - J0014A
click to zoom

JM38510/17401BCA Details

  • Manufacturer Part Number:

    JM38510/17401BCA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    CDIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.56 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.001 A

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.15 mA

  • Prop. Delay@Nom-Sup:

    155 ns

  • Propagation Delay (tpd):

    110 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Screening Level:

    MIL-M-38510 Class B

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

JM38510/17401BCA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for JM38510/17401BCA is -55°C to 125°C, although it can withstand storage temperatures from -65°C to 150°C.
  • To ensure reliability, follow proper handling and storage procedures, use a clean and controlled environment, and adhere to recommended soldering and assembly techniques. Additionally, consider using radiation-hardened or radiation-tolerant versions of the device.
  • JM38510/17401BCA is a radiation-hardened device, but it's not immune to radiation effects. Total Ionizing Dose (TID) and Single Event Effects (SEEs) can still occur. To mitigate these effects, use radiation shielding, error correction codes, and redundant systems. Consult Texas Instruments' radiation reports and application notes for more information.
  • Yes, although JM38510/17401BCA is designed for high-reliability applications, it can be used in other applications where high performance and low power consumption are required. However, ensure that the device meets the specific requirements of your application, and consult with Texas Instruments' support team if necessary.
  • The main differences lie in the screening and testing processes, as well as the packaging and qualification requirements. JM38510/17401BCA is designed to meet the stringent requirements of high-reliability applications, whereas its commercial equivalent may not meet the same standards. Consult Texas Instruments' documentation and support team for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JM38510/17401BCA Overview

Use the download button to access the JM38510/17401BCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JM385, or try a keyword search, such as Gates

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
