The recommended operating temperature range for JM38510/36101BEA is -55°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
To ensure the reliability of JM38510/36101BEA in high-reliability applications, it's crucial to follow proper handling, storage, and soldering procedures. Additionally, Texas Instruments recommends using a qualified manufacturer's list (QML) certified device, which has undergone rigorous testing and screening to ensure its reliability.
The maximum allowable power dissipation for JM38510/36101BEA is dependent on the operating temperature and the thermal resistance of the device. According to the datasheet, the maximum power dissipation is 1.5 W at a junction temperature of 125°C. However, it's essential to perform thermal analysis and design considerations to ensure the device operates within its safe operating area.
JM38510/36101BEA is not specifically designed or tested for radiation-hardened applications. However, Texas Instruments offers radiation-hardened versions of the device, such as the RH38510, which is designed to meet the requirements of high-reliability and radiation-hardened applications.
The recommended PCB layout and design considerations for JM38510/36101BEA include using a multi-layer PCB with a solid ground plane, minimizing trace lengths and widths, and ensuring proper decoupling and bypassing. Additionally, it's essential to follow Texas Instruments' recommended layout guidelines and application notes to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JM38510/36101BEA Overview

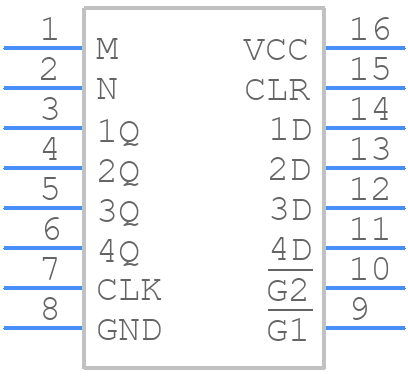

Use the download button to access the JM38510/36101BEA schematic symbol, PCB footprint, and 3D model.
