K22XHT-E9S-NV footprint, schematic symbol and 3D model by Kycon

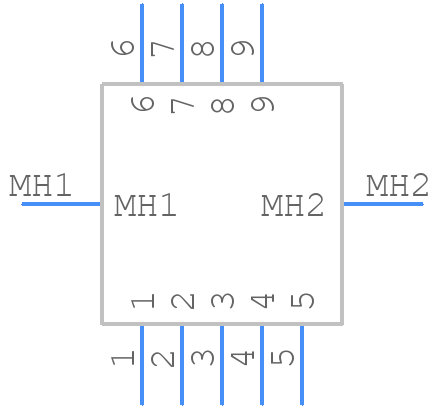

Symbol

click to zoom

PCB Footprints

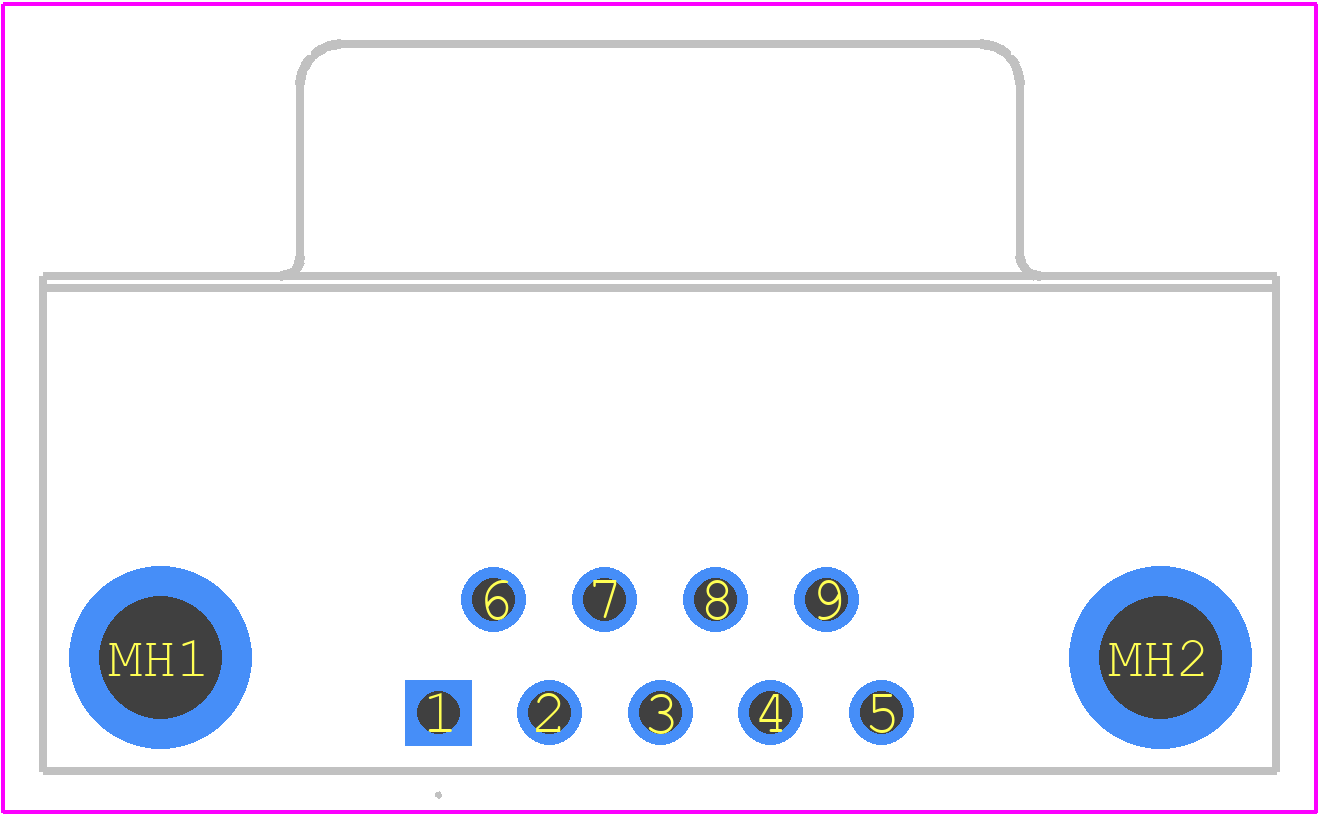

K22XHT-E9S-NV - Kycon PCB footprint - Other - Other - K22XHT-E9S-NV-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for K22XHT-E9S-NV
Part Number K22XHT-E9S-NV
Manufacturer Kycon
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - K22XHT-E9S-NV-1
Released Date Jan 28, 2024
Last Modified Date Feb 7, 2024 12:06 AM UTC
Pinout / Pin List Click Here (Member Only)

K22XHT-E9S-NV Details

Manufacturer Part Number:
K22XHT-E9S-NV
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
Package Description:
ROHS COMPLIANT
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Kycon Inc
YTEOL:
2
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
GOLD FLASH
Contact Finish Termination:
GOLD FLASH
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
9

K22XHT-E9S-NV Frequently Asked Questions (FAQs)

The recommended mating cycle for the K22XHT-E9S-NV connector is 500 cycles, but it's always best to consult with Kycon Inc or a qualified engineer for specific application requirements.
Yes, the K22XHT-E9S-NV connector is designed to withstand high-vibration environments, but it's essential to ensure proper mounting and securing to prevent damage or disconnection.
The K22XHT-E9S-NV connector is rated for operating temperatures between -40°C to 105°C and can withstand humid environments, but it's crucial to follow Kycon Inc's guidelines for environmental considerations and potential derating.
The recommended torque for securing the K22XHT-E9S-NV connector is typically between 0.5 to 1.5 Nm, but it's essential to consult the datasheet or Kycon Inc's documentation for specific torque values and guidelines.
The K22XHT-E9S-NV connector has a specific footprint and layout, so it's crucial to verify compatibility with your PCB design before implementation. Consult with Kycon Inc or a qualified engineer for guidance on PCB design considerations.

Trust Checks

Community Provided

System Verified

Community Approved

K22XHT-E9S-NV Overview

Use the download button to access the K22XHT-E9S-NV schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like K22XH, or try a keyword search, such as D Type Connectors
