K66-A26S-NJ - Kycon

K66-A26S-NJ Details

• Manufacturer Part Number:

  K66-A26S-NJ

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Kycon Inc

• YTEOL:

  0

• Additional Feature:

  GNDING BRACKETS

• Body Breadth:

  0.494 inch

• Body Depth:

  0.639 inch

• Body Length:

  1.541 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  GOLD

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Insertion Force-Max:

  2.502 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.09 inch

• Mating Contact Row Spacing:

  0.078 inch

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  HEX HEAD

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

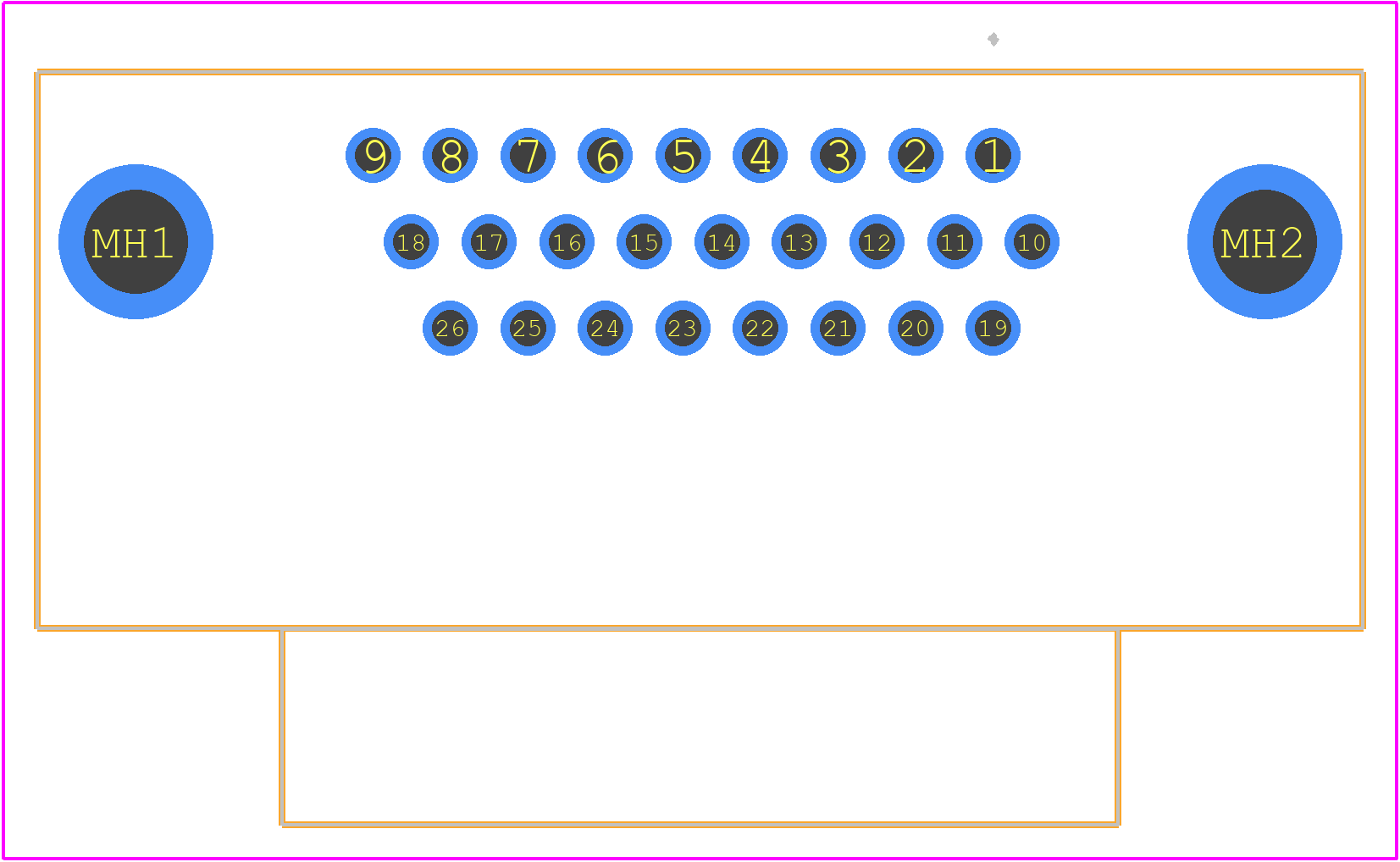

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL, CSA

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  2.286 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• Withdrawl Force-Min:

  1.112 N
