K86X-ED-15P-BR - Kycon

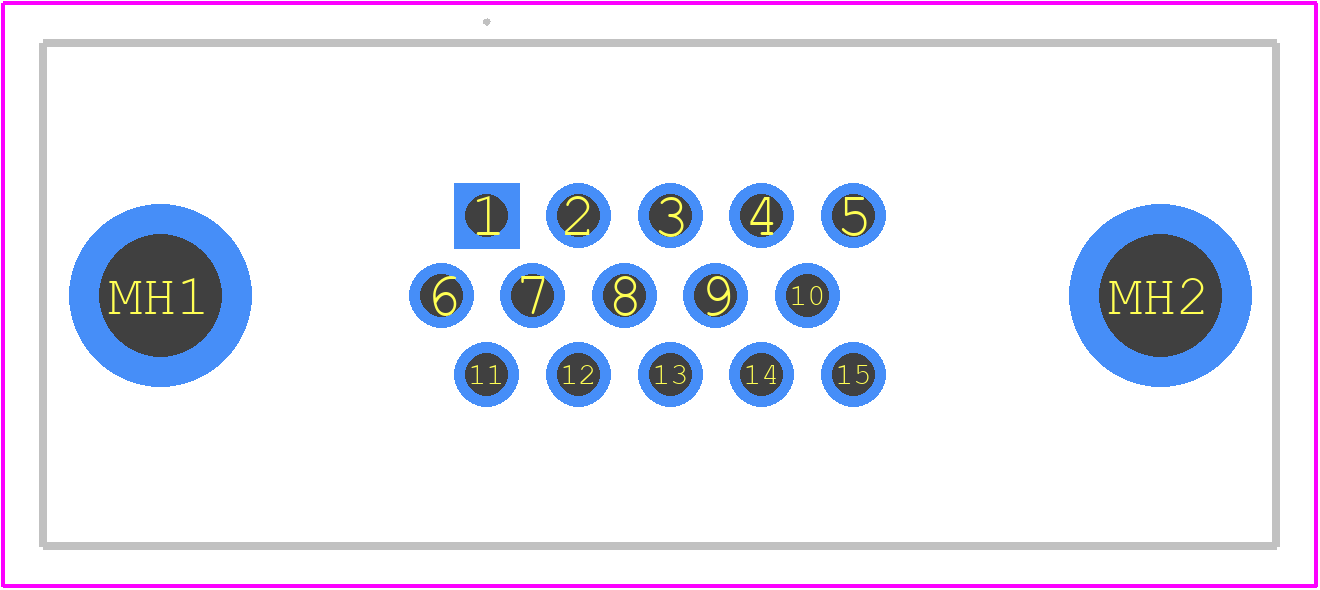

K86X-ED-15P-BR Details

• Manufacturer Part Number:

  K86X-ED-15P-BR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Kycon Inc

• YTEOL:

  8

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.494 inch

• Body Depth:

  0.193 inch

• Body Length:

  1.213 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin/Gold (Sn/Au)

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  13 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• JESD-609 Code:

  e2

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.09 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.9812 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Length:

  0.169 inch

• Terminal Pitch:

  2.286 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15
