Symbol

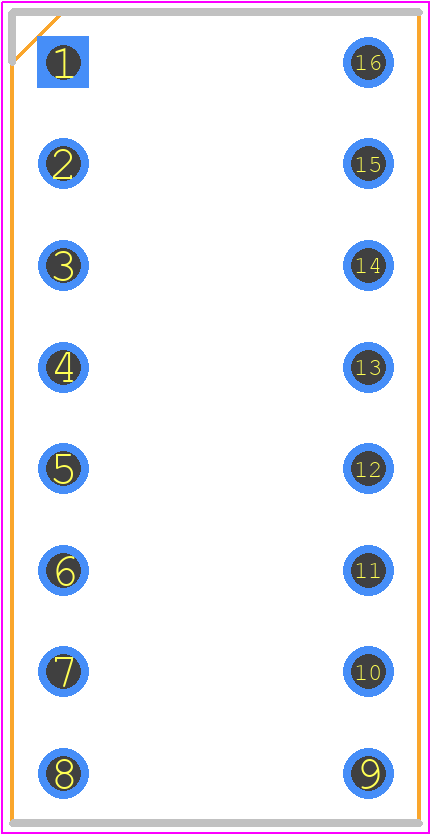

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KB-H100SRD
- Part Number KB-H100SRD
- Manufacturer Kingbright
- Pin Count 16
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - KB-H100SRD
- Released Date Sep 4, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KB-H100SRD Details
-
Manufacturer Part Number:
KB-H100SRD
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
7
-
Color:
HYPER RED
-
Configuration:
SEPARATE, 8 ELEMENTS
-
Forward Current-Max:
0.03 A
KB-H100SRD Frequently Asked Questions (FAQs)
-
The recommended storage temperature for the KB-H100SRD is -20°C to 60°C, with a relative humidity of 60% or less.
-
Yes, the KB-H100SRD is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
-
The typical junction temperature of the KB-H100SRD is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
-
Yes, the KB-H100SRD is compatible with lead-free soldering, but it's recommended to follow the manufacturer's soldering profile to prevent damage.
-
The recommended reflow soldering temperature profile for the KB-H100SRD is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.
Trust Checks
Community Provided
System Verified
Community Approved
KB-H100SRD Overview

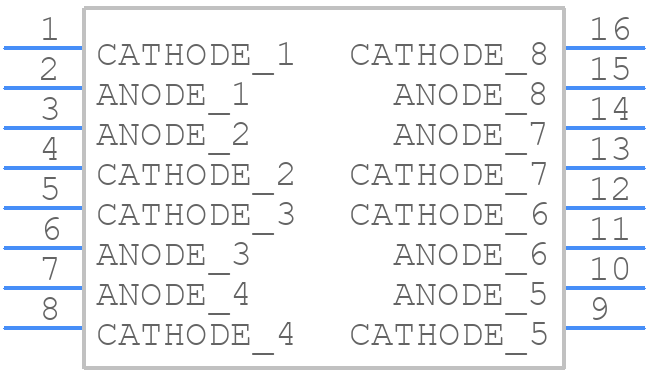

Use the download button to access the KB-H100SRD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KB-H1,
or try a keyword search, such as Visible LEDs
