KB2835SGD - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 High, DIP Green (x 2) Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole

Download KB2835SGD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

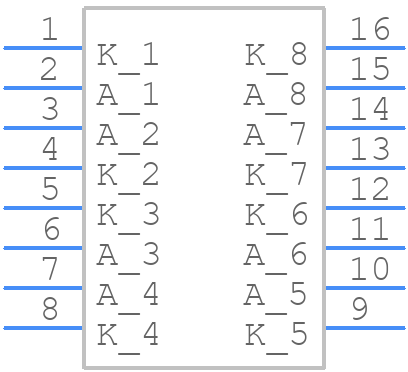

KB2835SGD - Kingbright - PCB symbol
click to zoom
PCB Footprints

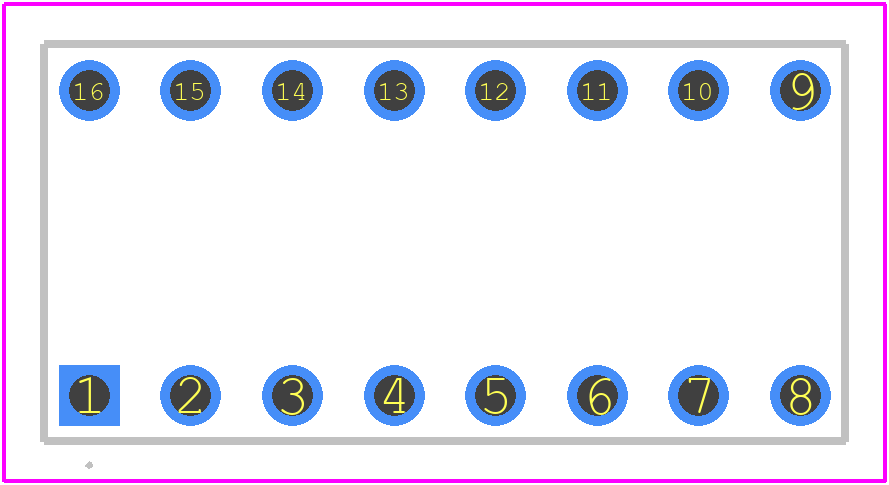

KB2835SGD - Kingbright PCB footprint - Other - Other - KB2835SGD-2
click to zoom
3D Models
KB2835SGD - Kingbright - 3D model - Other - KB2835SGD-2
click to zoom

KB2835SGD Details

  • Manufacturer Part Number:

    KB2835SGD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    19.05 MM X 3.81 MM, ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    SUPER BRIGHT GREEN

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Lens Type:

    DIFFUSED GREEN

  • Luminous Intensity-Nom:

    100.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.12 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    19.05 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

KB2835SGD Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for KB2835SGD is -40°C to 100°C.
  • Yes, KB2835SGD is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
  • The typical forward voltage drop of KB2835SGD is around 2.0-2.5V at a forward current of 20mA.
  • Yes, KB2835SGD can be used in outdoor applications, but it's recommended to use a suitable enclosure or coating to protect it from moisture and UV radiation.
  • The maximum allowable current for KB2835SGD is 30mA, but it's recommended to operate it at a maximum of 20mA for optimal performance and lifespan.
