KCDA02-105 - Kingbright

Description: KINGBRIGHT - KCDA02-105 - DISP, SMD, 0.2" CMN ANODE, RED

Download KCDA02-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

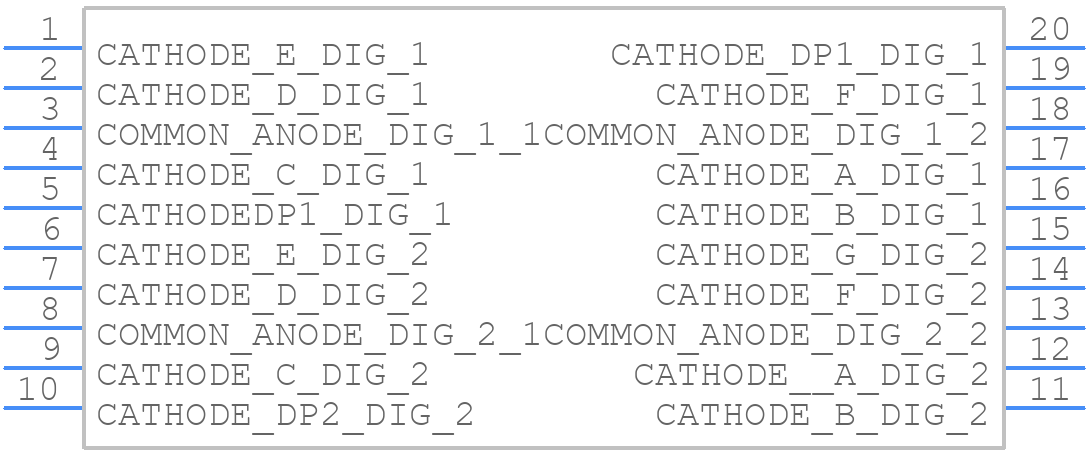

Symbol
KCDA02-105 - Kingbright - PCB symbol
click to zoom
PCB Footprints
KCDA02-105 - Kingbright PCB footprint - Other - Other - KCDA02-105-3
click to zoom
3D Models
KCDA02-105 - Kingbright - 3D model - Other - KCDA02-105-3
click to zoom

KCDA02-105 Details

  • Manufacturer Part Number:

    KCDA02-105

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HYPER RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    5.08 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm
