KCDC03-107 footprint, schematic symbol and 3D model by Kingbright

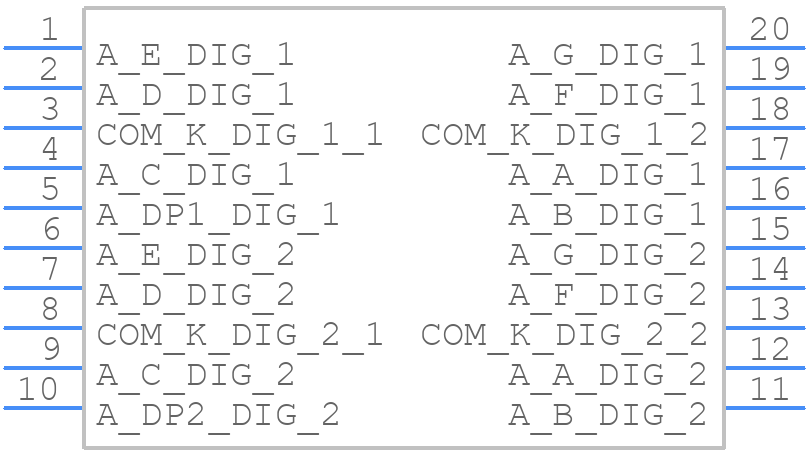

Symbol

PCB Footprints

3D Models

KCDC03-107 Details

The recommended storage temperature for KCDC03-107 is -20°C to 40°C, with a relative humidity of 60% or less.
Yes, KCDC03-107 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
The maximum soldering temperature for KCDC03-107 is 260°C for 3 seconds, with a peak temperature of 240°C. Exceeding this temperature may damage the LED.
To prevent electrostatic discharge (ESD) damage, handle KCDC03-107 with anti-static wrist straps, mats, or bags. Ensure that all equipment and tools are properly grounded.
The recommended operating temperature range for KCDC03-107 is -20°C to 80°C. Operating outside this range may affect the LED's performance, lifespan, or reliability.

Community Provided

System Verified

Community Approved

Use the download button to access the KCDC03-107 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KCDC0, or try a keyword search, such as LED Displays
