KCPSA04-107 - Kingbright

Description: KCPSA04-107 Kingbright 14-Segment LED Display, CA Yellow 46 mcd RH DP 10.2mm

Download KCPSA04-107 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

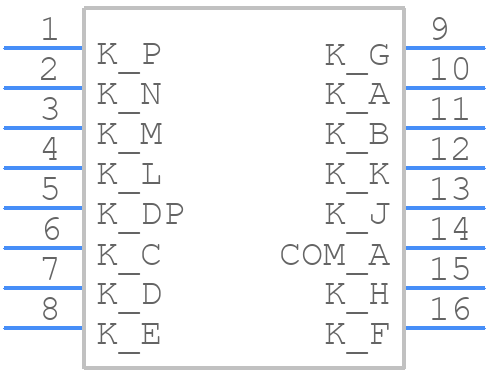

KCPSA04-107 - Kingbright - PCB symbol
click to zoom
PCB Footprints

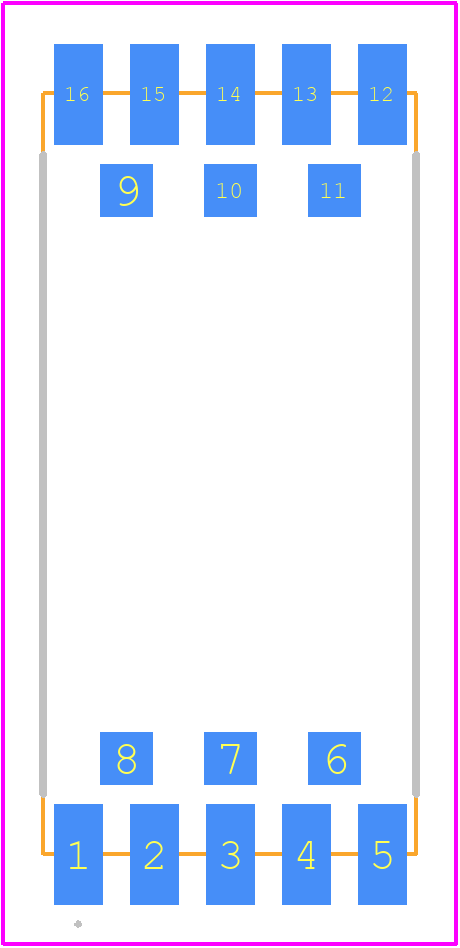

KCPSA04-107 - Kingbright PCB footprint - Other - Other - 9.3mm x 19mm x 3.75mm
click to zoom
3D Models
KCPSA04-107 - Kingbright - 3D model - Other - 9.3mm x 19mm x 3.75mm
click to zoom

KCPSA04-107 Details

  • Manufacturer Part Number:

    KCPSA04-107

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    SUPER BRIGHT YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

  • Peak Wavelength:

    590 nm

KCPSA04-107 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for KCPSA04-107 is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, KCPSA04-107 is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for KCPSA04-107 is 260°C for 3 seconds, with a peak temperature of 240°C. It's recommended to follow the recommended soldering profile to avoid damaging the LED.
  • Yes, KCPSA04-107 is compatible with lead-free soldering, but it's recommended to follow the recommended soldering profile and temperature to ensure reliable assembly.
  • The typical lifespan of KCPSA04-107 is 50,000 hours or more, depending on the operating conditions, such as temperature, humidity, and drive current.
