KCPSC04-105 - Kingbright

Description: KCPSC04-105 Kingbright 14-Segment LED Display, CC Red 36 mcd RH DP 10.2mm

Download KCPSC04-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

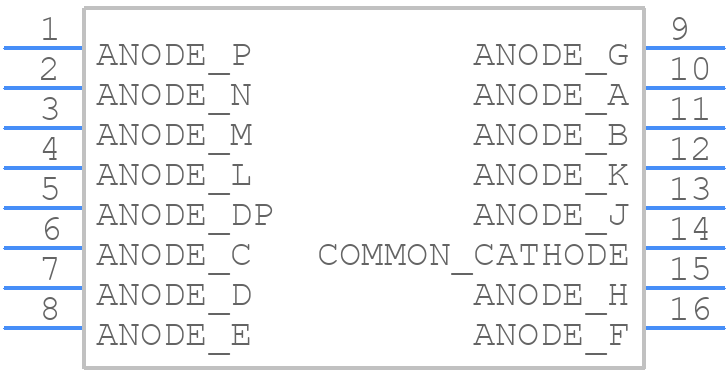

KCPSC04-105 - Kingbright - PCB symbol
click to zoom
PCB Footprints

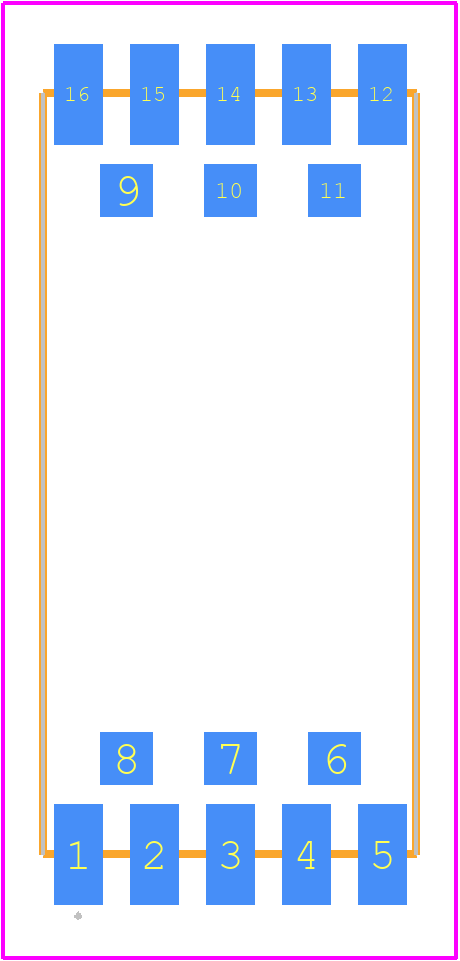

KCPSC04-105 - Kingbright PCB footprint - Other - Other - KCPSC04-105-2
click to zoom
3D Models
KCPSC04-105 - Kingbright - 3D model - Other - KCPSC04-105-2
click to zoom

KCPSC04-105 Details

  • Manufacturer Part Number:

    KCPSC04-105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    HYPER RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

KCPSC04-105 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for KCPSC04-105 is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, KCPSC04-105 is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, dust, and UV radiation.
  • The maximum soldering temperature for KCPSC04-105 is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, KCPSC04-105 is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the maximum allowed levels.
  • The typical lifespan of KCPSC04-105 is 50,000 hours or more, depending on the operating conditions and usage.
