KCSA56-104 - Kingbright

Description: Display LED 7-segment 14.22mm 0.56" No.char 1 red 8÷26mcd

Download KCSA56-104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KCSA56-104 - Kingbright - PCB symbol
click to zoom
PCB Footprints

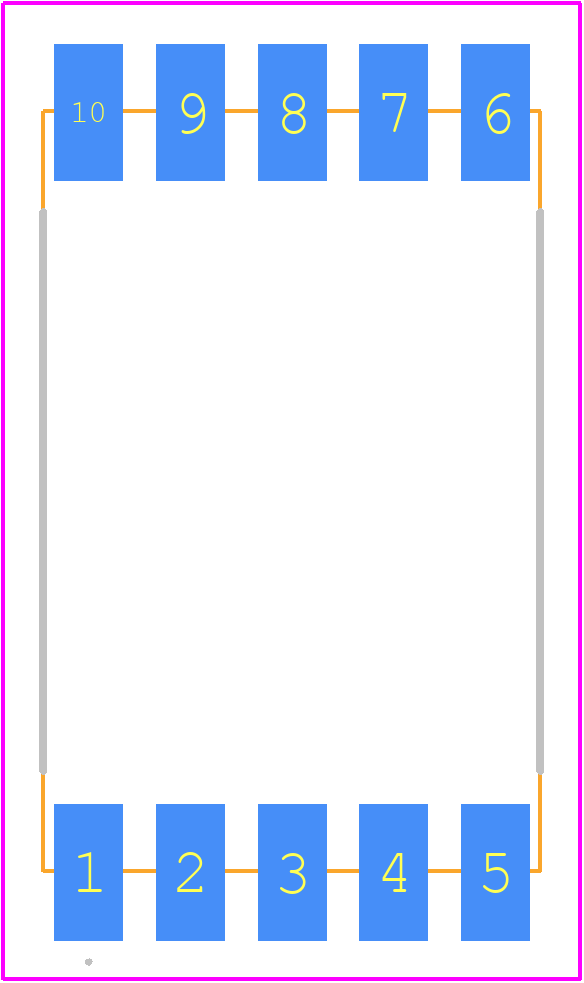

KCSA56-104 - Kingbright PCB footprint - Other - Other - KCSA56-104-1
click to zoom
3D Models
KCSA56-104 - Kingbright - 3D model - Other - KCSA56-104-1
click to zoom

KCSA56-104 Details

  • Manufacturer Part Number:

    KCSA56-104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    2

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY
