KCSA56-105 - Kingbright

Description: Display: LED; 7-segment; 14.22mm; 0.56"; No.char:1; red; 4.7÷30mcd

Download KCSA56-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KCSA56-105 - Kingbright - PCB symbol
click to zoom

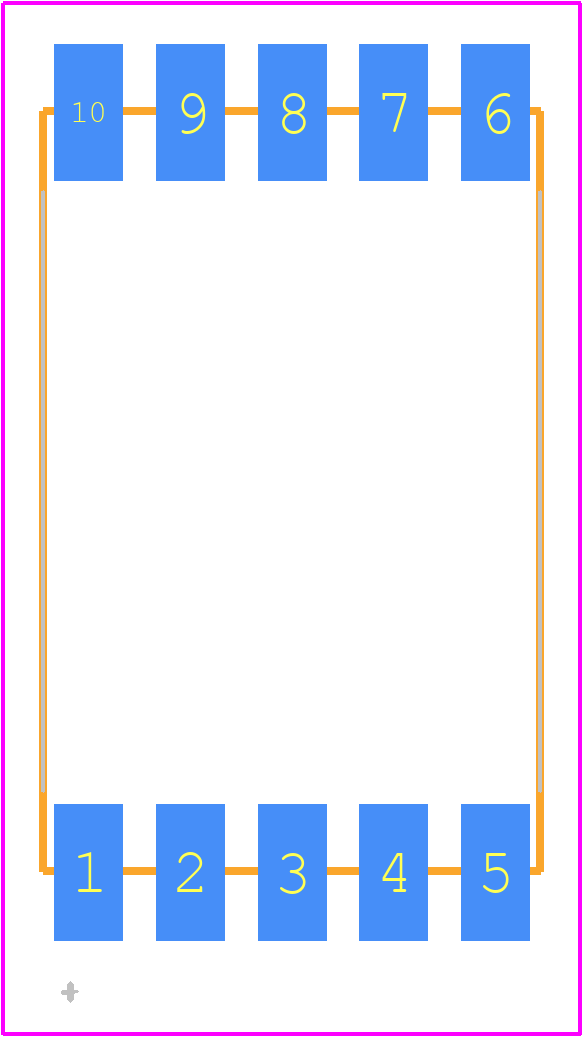

PCB Footprints
KCSA56-105 - Kingbright PCB footprint - Other - Other - KCSA56-105-1
click to zoom
3D Models
KCSA56-105 - Kingbright - 3D model - Other - KCSA56-105-1
click to zoom

KCSA56-105 Details

  • Manufacturer Part Number:

    KCSA56-105

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HYPER RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

KCSA56-105 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for KCSA56-105 is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, KCSA56-105 is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture and UV degradation.
  • The maximum soldering temperature for KCSA56-105 is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, KCSA56-105 is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
  • The typical luminous intensity of KCSA56-105 is 12,000 mcd, with a viewing angle of 30°.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KCSA56-105 Overview

Use the download button to access the KCSA56-105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KCSA5, or try a keyword search, such as LED Displays
