KCSA56-123 footprint, schematic symbol and 3D model by Kingbright

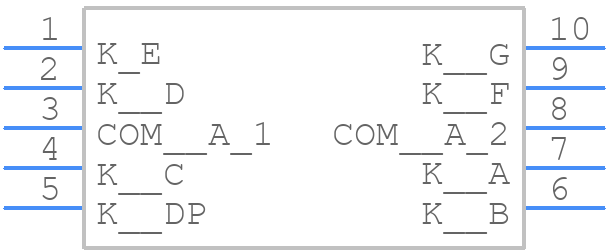

Symbol

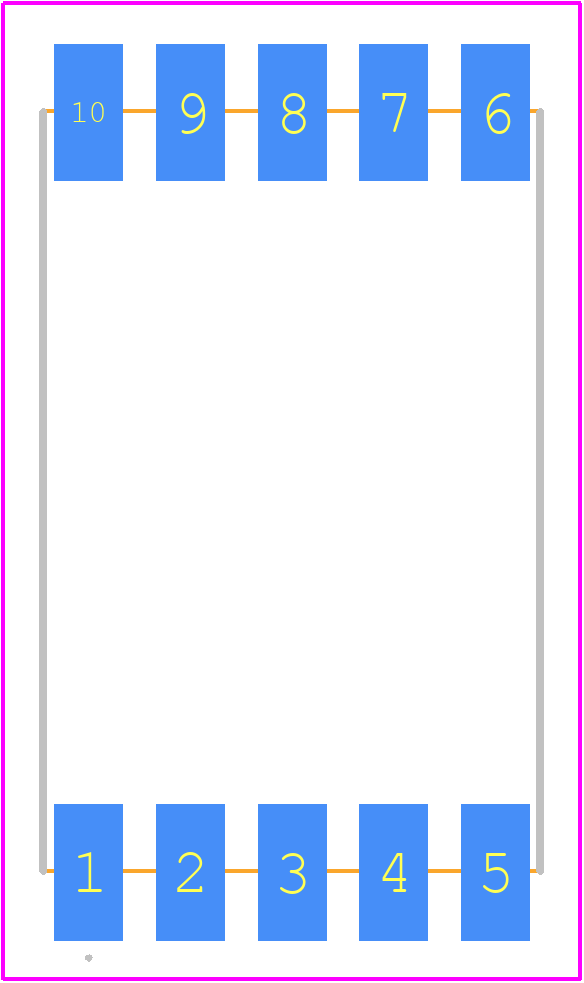

PCB Footprints

3D Models

KCSA56-123 Details

The recommended storage temperature for KCSA56-123 is -20°C to 40°C, with a relative humidity of 60% or less.
While KCSA56-123 is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from moisture and extreme temperatures. A clear resin or conformal coating can be applied to protect the LED from environmental factors.
The maximum soldering temperature for KCSA56-123 is 260°C for 3 seconds. Exceeding this temperature can cause damage to the LED.
Kingbright recommends using an electrostatic discharge (ESD) wrist strap or mat when handling KCSA56-123 to prevent damage from static electricity. The human body model (HBM) rating for KCSA56-123 is 2 kV.
The recommended reflow soldering profile for KCSA56-123 is a peak temperature of 240°C to 250°C, with a dwell time of 20 to 30 seconds above 220°C.

Community Provided

System Verified

Community Approved

Use the download button to access the KCSA56-123 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KCSA5, or try a keyword search, such as LED Displays
