KCSC56-105 - Kingbright

Description: Kingbright KCSC56-105 7-Segment LED Display, CC Red 44 mcd RH DP 14.22mm

Download KCSC56-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KCSC56-105 - Kingbright - PCB symbol
click to zoom
PCB Footprints

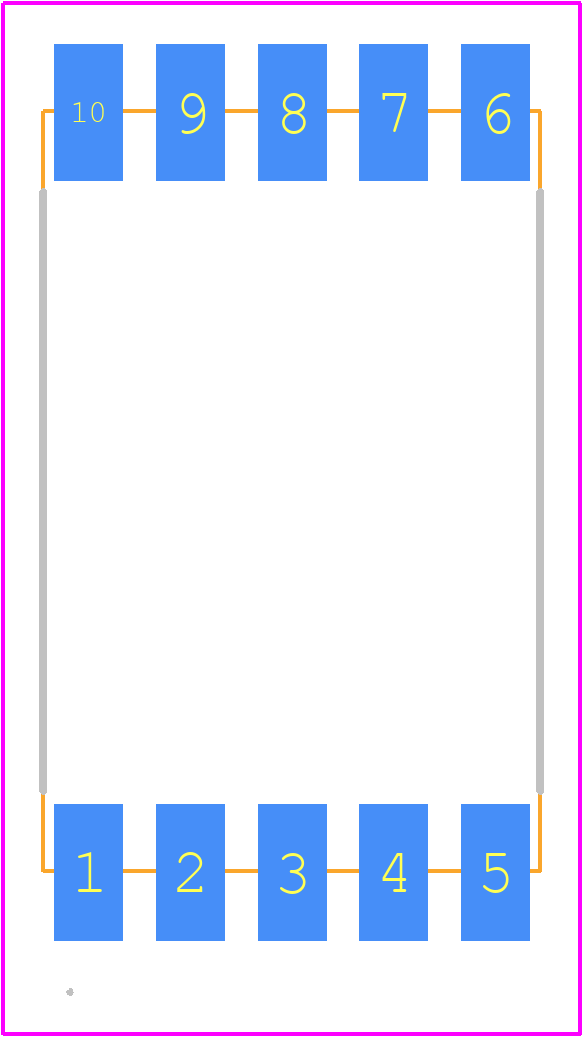

KCSC56-105 - Kingbright PCB footprint - Other - Other - KCSC56-105-2
click to zoom
3D Models
KCSC56-105 - Kingbright - 3D model - Other - KCSC56-105-2
click to zoom

KCSC56-105 Details

  • Manufacturer Part Number:

    KCSC56-105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HYPER RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

KCSC56-105 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for KCSC56-105 is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, KCSC56-105 is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for KCSC56-105 is 30mA, but it's recommended to operate at a current of 20mA or less for optimal performance and lifespan.
  • Yes, KCSC56-105 is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 3 seconds.
  • The typical viewing angle for KCSC56-105 is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KCSC56-105 Overview

Use the download button to access the KCSC56-105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KCSC5, or try a keyword search, such as LED Displays
