KTS1688EUH-TR footprint, schematic symbol and 3D model by Kinetic Technologies

KTS1688EUH-TR - Kinetic Technologies

Description: • Wide Input voltage range: 2.5V to 5.5V • 28V Absolute Ratings at VOUT • Adjustable Current Limit to 2.5A • Integrated MOSFET with 68mΩ (Typ) at 5VIN and 1A IOUT • Output OVP 5.8V (Typ) • Open-Drain over-current fault flag • Integrated protection  Thermal Shutdown  Under-Voltage Lockout (UVLO)  Soft-start  OUT to IN Reverse Blocking • Pb-free Package:  9-Bump WLCSP 1.22mm x 1.22mm • -40°C to +85°C Temperature Range

Download KTS1688EUH-TR Model

Schematic
symbols

PCB
footprints

3D
models

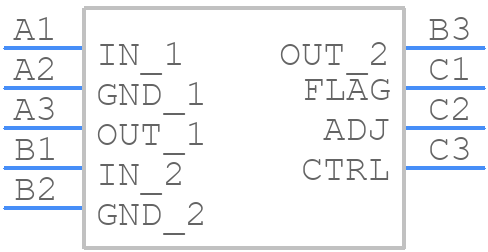

Symbol

click to zoom

PCB Footprints

KTS1688EUH-TR - Kinetic Technologies PCB footprint - BGA - BGA - WLCSP-9

click to zoom

3D Models

KTS1688EUH-TR - Kinetic Technologies - 3D model - BGA - WLCSP-9

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for KTS1688EUH-TR
Part Number KTS1688EUH-TR
Manufacturer Kinetic Technologies
Pin Count 9
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WLCSP-9
Released Date May 11, 2024
Last Modified Date May 11, 2024 2:13 PM UTC
