KTS1691BEDAE-TA footprint, schematic symbol and 3D model by Kinetic Technologies

KTS1691BEDAE-TA - Kinetic Technologies

Description: 3V to 24V Operating Voltage Range • 29V Abs. Max. Rating at IN and OUT • 7A Continuous Current Rating  18A Pulse Current Rating (duration PD limited) • 14.5mΩ typ. On-Resistance from IN to OUT • Soft-Start (SS) Limits Inrush Current • Over-Voltage Protection (OVP) at IN  24V Internally Fixed  4V to 24V External Resistor Programmable • “Ideal Diode” Reverse Current Protection (RCP) for KTS1691A/B only  20mV Forward Voltage and 15µs Fast Recovery • Bi-directional Mode when enabled for KTS1691C

Download KTS1691BEDAE-TA Model

Schematic
symbols

PCB
footprints

3D
models

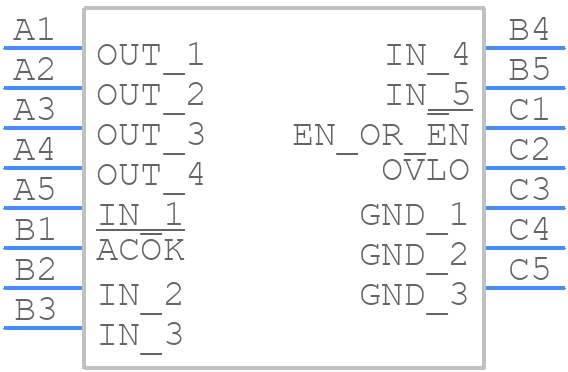

Symbol

click to zoom

PCB Footprints

KTS1691BEDAE-TA - Kinetic Technologies PCB footprint - BGA - BGA - 15-bump 2.86mm x 1.68mm x 0.56mm WLCSP Package, 0.5mm pitch..

click to zoom

3D Models

KTS1691BEDAE-TA - Kinetic Technologies - 3D model - BGA - 15-bump 2.86mm x 1.68mm x 0.56mm WLCSP Package, 0.5mm pitch..

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for KTS1691BEDAE-TA
Part Number KTS1691BEDAE-TA
Manufacturer Kinetic Technologies
Pin Count 15
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 15-bump 2.86mm x 1.68mm x 0.56mm WLCSP Package, 0.5mm pitch..
Released Date Jul 9, 2025
Last Modified Date Jul 9, 2025 10:53 AM UTC
Pinout / Pin List Click Here (Member Only)

KTS1691BEDAE-TA Details

Manufacturer Part Number:
KTS1691BEDAE-TA
Manufacturer:
Kinetic Technologies HK Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KTS1691BEDAE-TA Overview

Use the download button to access the KTS1691BEDAE-TA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KTS16, or try a keyword search, such as Power Management Circuits
