KW1-391CURB - RED POWER

Description: 7-segment LED (1-digit, red, cathode) 35ｍA 5V

Download KW1-391CURB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW1-391CURB model

Email notifications will be applied after download.

Send part feedback

Symbol

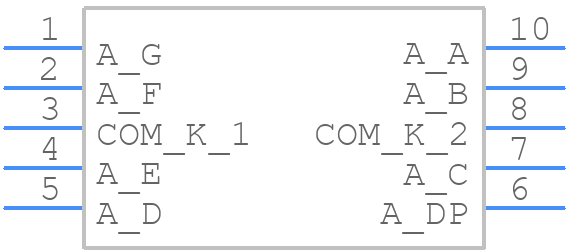

KW1-391CURB - RED POWER - PCB symbol

PCB Footprints

KW1-391CURB - RED POWER PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10

3D Models

KW1-391CURB - RED POWER - 3D model - Dual-In-Line Sockets - DIP-10

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW1-391CURB
Part Number KW1-391CURB
Manufacturer RED POWER
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-10
Released Date Nov 29, 2024
Last Modified Date Dec 2, 2024 5:51 AM UTC
Pinout / Pin List Click Here (Member Only)

KW1-391CURB Details

Manufacturer Part Number:
KW1-391CURB
Manufacturer:
(UNAVAILABLE)

Trust Checks

Community Provided

System Verified

Community Approved

KW1-391CURB Overview

Use the download button to access the KW1-391CURB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KW1-3, or try a keyword search, such as LED Displays
