L-934SA/1I1Y1GD - Kingbright

Description: LED in housing 3mm No.of diodes 3 red/green/yellow 20mA 40°,5V,-40°C To +85°C

Download L-934SA/1I1Y1GD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

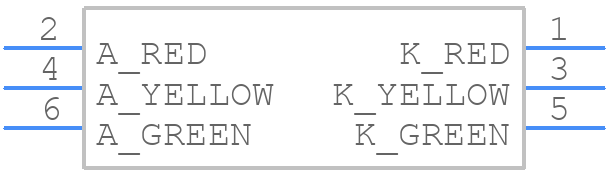

L-934SA/1I1Y1GD - Kingbright - PCB symbol
click to zoom
PCB Footprints

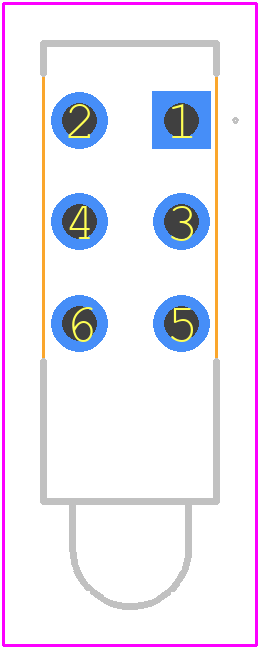

L-934SA/1I1Y1GD - Kingbright PCB footprint - Other - Other - L-934SA/1I1Y1GD-1
click to zoom
3D Models
L-934SA/1I1Y1GD - Kingbright - 3D model - Other - L-934SA/1I1Y1GD-1
click to zoom

L-934SA/1I1Y1GD Details

  • Manufacturer Part Number:

    L-934SA/1I1Y1GD

  • Part Life Cycle Code:

    Active Unconfirmed

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    2

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    HIGH EFFICIENCY RED/YELLOW/GREEN

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    20.0/15.0/20.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED ARRAY

  • Overall Height:

    15.24 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    627/590/565 nm

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    60 deg

L-934SA/1I1Y1GD Frequently Asked Questions (FAQs)

  • The recommended storage temperature for L-934SA/1I1Y1GD is -20°C to 30°C, with a relative humidity of 60% or less.
  • While L-934SA/1I1Y1GD is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV radiation, and extreme temperatures.
  • The maximum soldering temperature for L-934SA/1I1Y1GD is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, L-934SA/1I1Y1GD is compatible with lead-free soldering, but the soldering profile should be adjusted according to the specific lead-free solder alloy used.
  • The typical lifespan of L-934SA/1I1Y1GD is 50,000 hours or more, depending on operating conditions and usage.
