L177TSEH09SOL2RM5 - Amphenol

Description: Dsub, Stamped Signal 3A, Straight PCB Thru Hole Low Profile, Height=6.02mm (.237in), 9 Socket, Bright Tin Shell, 0.38µm (15µ in)

Download L177TSEH09SOL2RM5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L177TSEH09SOL2RM5 - Amphenol - PCB symbol
click to zoom
PCB Footprints

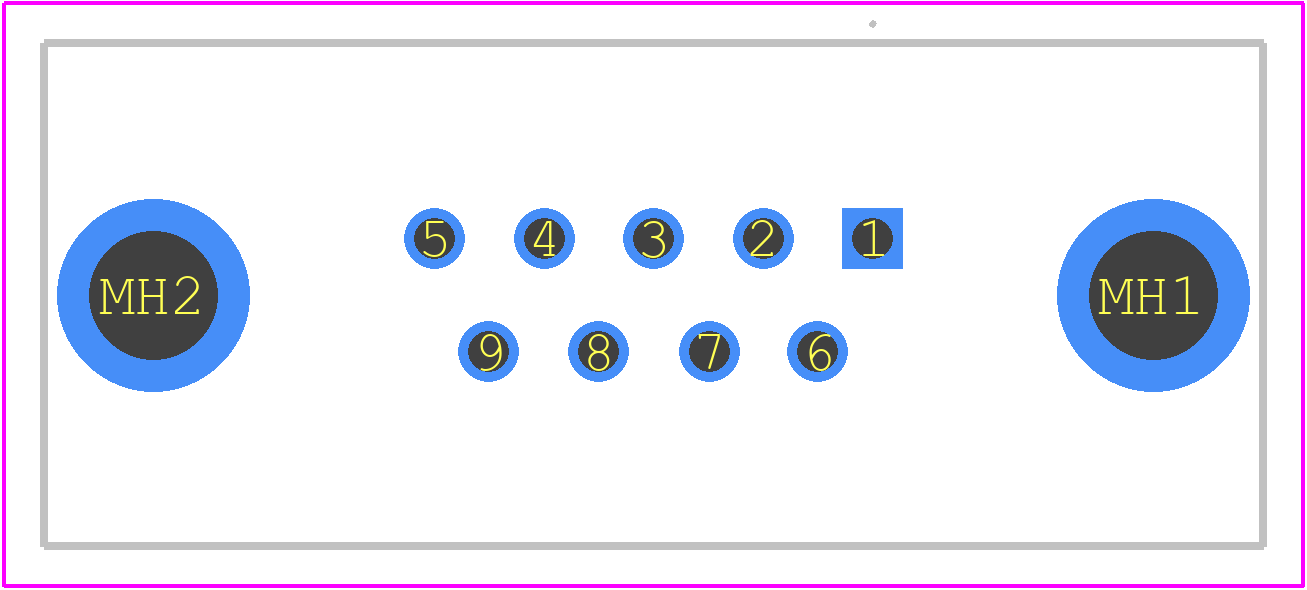

L177TSEH09SOL2RM5 - Amphenol PCB footprint - Other - Other - L177TSEH09SOL2RM5-2
click to zoom
3D Models
L177TSEH09SOL2RM5 - Amphenol - 3D model - Other - L177TSEH09SOL2RM5-2
click to zoom

L177TSEH09SOL2RM5 Details

  • Manufacturer Part Number:

    L177TSEH09SOL2RM5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (15)

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

L177TSEH09SOL2RM5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the terminals.
  • Yes, the L177TSEH09SOL2RM5 is designed to withstand high-vibration environments. It meets the requirements of IEC 61373 Cat. 2, which ensures reliable performance in applications with vibrations up to 15 g.
  • Yes, the L177TSEH09SOL2RM5 is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes.
  • The maximum operating temperature range for the L177TSEH09SOL2RM5 is -40°C to +125°C. It's essential to ensure that the connector operates within this range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's crucial to consult with Amphenol Corporation or a qualified engineer to ensure the connector's performance and reliability are not compromised.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L177TSEH09SOL2RM5 Overview

Use the download button to access the L177TSEH09SOL2RM5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L177T, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
