L297/1 - STMicroelectronics

Description: STMICROELECTRONICS - L297/1 - Motor Driver/Controller, Stepper, 4.75V to 7V supply, 3.9V/10 mA/2 Outputs, DIP-20

Download L297/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

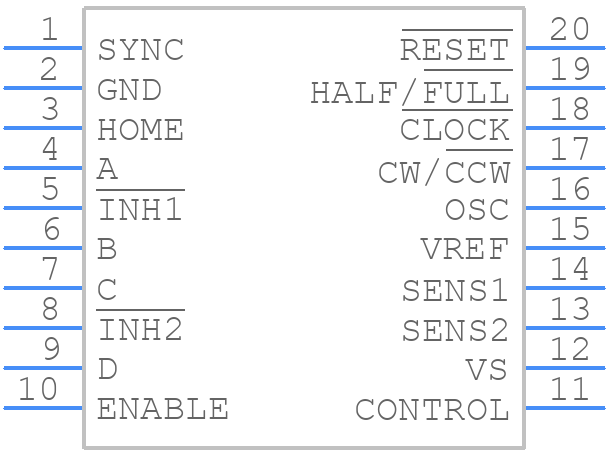

L297/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L297/1 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20
click to zoom
3D Models
L297/1 - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP20
click to zoom

L297/1 Details

  • Manufacturer Part Number:

    L297/1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.93 mm

  • Supply Current-Max (Isup):

    80 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L297/1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 20V, but it's recommended to keep it between 8V and 15V for optimal performance.
  • The value of Rs and Ct depends on the maximum current and the desired current sensing accuracy. A good starting point is to use Rs = 0.1 ohm and Ct = 2.2nF, and then adjust based on the specific application requirements.
  • The bootstrap capacitor (Cb) is used to generate the high-side gate drive voltage. A good value for Cb is between 10nF and 100nF, depending on the switching frequency and the gate drive current requirements.
  • To ensure proper synchronization, the external oscillator or clock signal should be connected to the CLKIN pin, and the SYNC pin should be tied to VCC. The L297/1 will then synchronize its internal clock with the external clock signal.
  • The L297/1 can operate up to 100 kHz, but the maximum frequency depends on the specific application and the external components used.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L297/1 Overview

Use the download button to access the L297/1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L297/, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
