L5962 - STMicroelectronics

Description: Multiple linear/switching voltage regulator

Download L5962 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

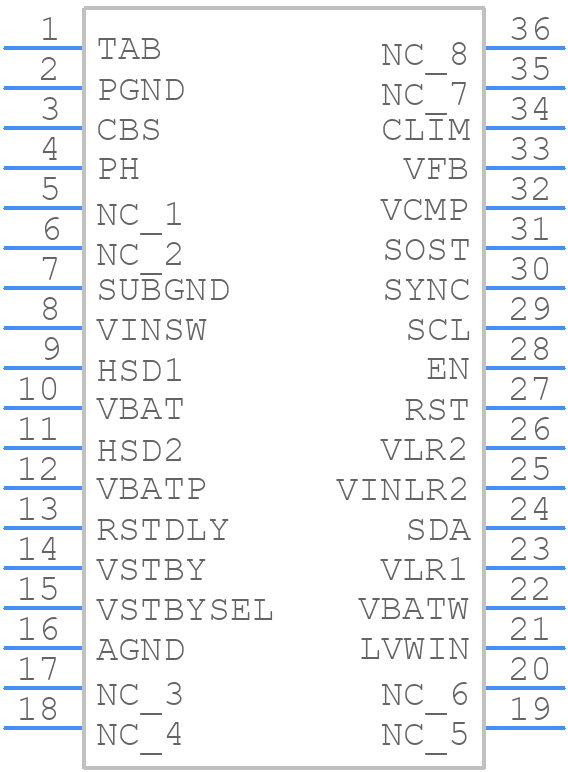

L5962 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5962 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - L5962
click to zoom
3D Models
L5962 - STMicroelectronics - 3D model - Small Outline Packages - L5962
click to zoom

L5962 Details

  • Manufacturer Part Number:

    L5962

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.18 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Nom (Vsup):

    14.4 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L5962 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN1026, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • STMicroelectronics provides a component selection guide in the datasheet, which includes formulas and guidelines for selecting the input capacitor, output inductor, and other external components based on the specific application requirements.
  • The L5962 is rated for operation from -40°C to 150°C, but the device's performance may degrade at higher temperatures. The datasheet provides thermal derating curves to help designers estimate the device's performance at elevated temperatures.
  • STMicroelectronics provides EMC guidelines in the application note AN1031, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with relevant EMC standards.
  • The L5962 is a high-current, low-dropout linear voltage regulator suitable for a wide range of applications, including industrial, automotive, and consumer electronics. The datasheet provides a detailed description of the device's features and performance, which can help designers determine if it's the right device for their specific application.
