STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ripple current rating, and temperature rating.
The maximum ambient temperature for the L5962TR is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to consider the device's thermal performance, including the junction temperature, to ensure reliable operation.
Yes, the L5962TR is designed to withstand vibrations up to 10g peak acceleration, making it suitable for automotive and industrial applications. However, it's essential to ensure proper PCB mounting, component selection, and mechanical design to minimize the risk of mechanical stress and failure.
Start by checking the input voltage, output voltage, and output current to ensure they are within the recommended operating conditions. Verify the PCB layout, component selection, and thermal design meet the recommended guidelines. Use oscilloscopes and thermal imaging tools to identify potential issues. Consult the datasheet, application notes, and STMicroelectronics' support resources for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L5962TR Overview

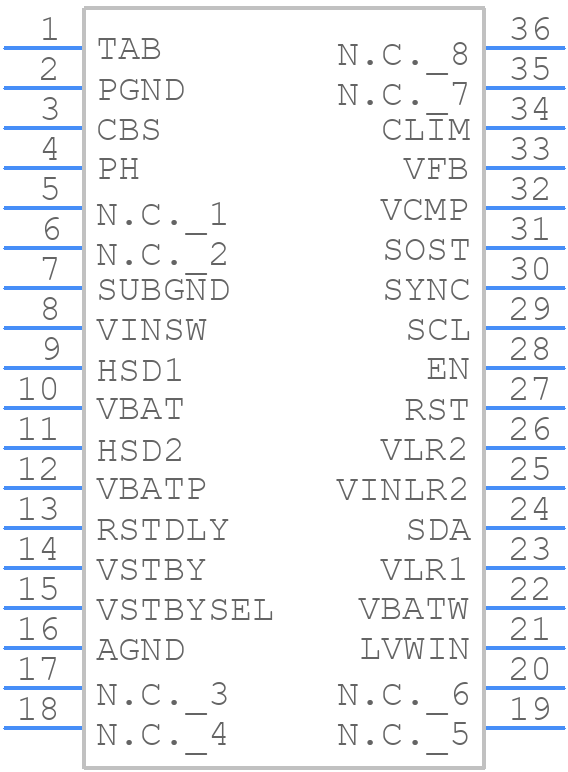

Use the download button to access the L5962TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5962,
or try a keyword search, such as Switching Regulator or Controllers
