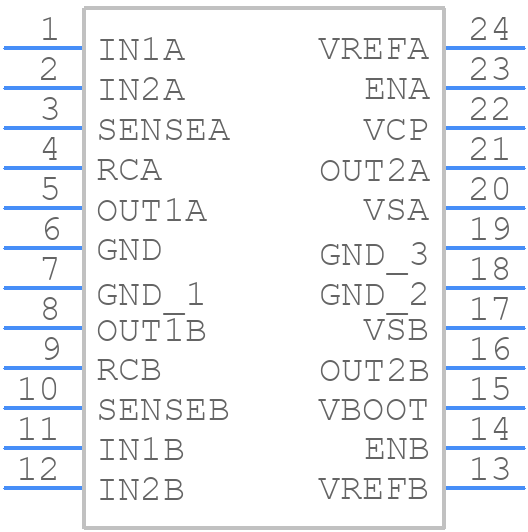

L6207D - STMicroelectronics

L6207D Frequently Asked Questions (FAQs)

• What is the maximum operating frequency of the L6207D?
  The maximum operating frequency of the L6207D is 100 kHz, but it can be operated up to 200 kHz with reduced performance.
• How do I choose the right sense resistor value for my application?
  The sense resistor value depends on the maximum current and voltage of your application. A general rule of thumb is to choose a sense resistor value that limits the voltage across it to 0.5-1.5 V at the maximum current. You can use the formula Rsense = 0.5-1.5 V / Imax to calculate the sense resistor value.
• What is the purpose of the bootstrap capacitor (CBOOT) and how do I choose its value?
  The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value for CBOOT is 10-22 nF, but it can be adjusted based on the specific application requirements and the voltage rating of the capacitor.
• How do I protect the L6207D from overcurrent and overvoltage conditions?
  The L6207D has built-in overcurrent protection, but you can also add external protection circuits such as a fuse or a current-sensing resistor to detect overcurrent conditions. For overvoltage protection, you can use a voltage regulator or a zener diode to clamp the input voltage to a safe level.
• What is the maximum power dissipation of the L6207D and how do I calculate it?
  The maximum power dissipation of the L6207D depends on the package type and the ambient temperature. You can calculate the power dissipation using the formula Pd = (Vin * Iin) + (Vout * Iout), where Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current.
