L6208PD - STMicroelectronics

Description: L6208PD, Motor Driver, 8 → 52 V, 38-Pin PowerSO

Download L6208PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

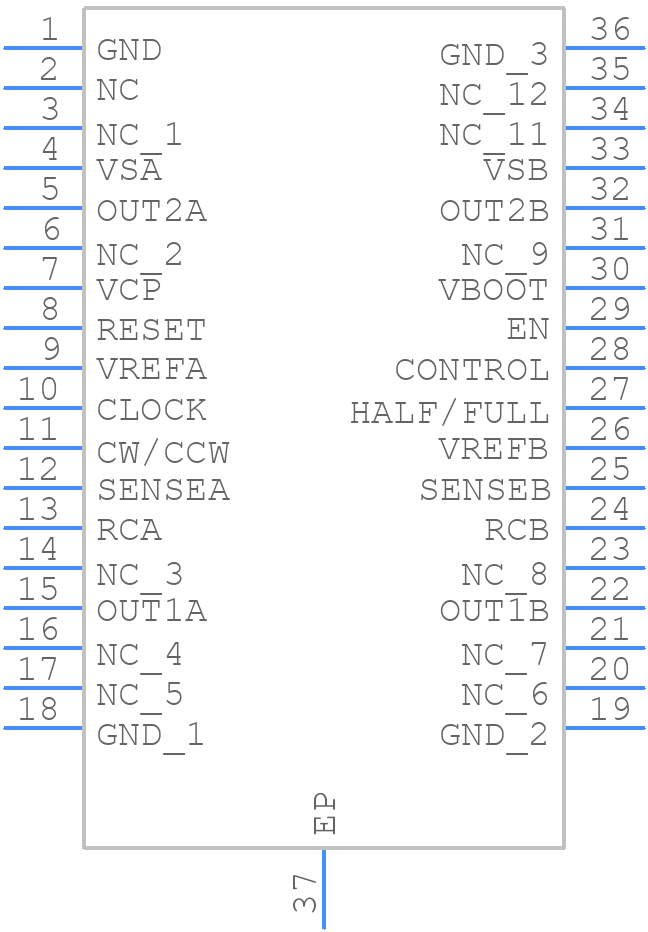

L6208PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6208PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO36
click to zoom
3D Models
L6208PD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO36
click to zoom

L6208PD Details

  • Manufacturer Part Number:

    L6208PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L6208PD Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the L6208PD is 100 kHz, but it can be operated up to 200 kHz with reduced performance.
  • The sense resistor value depends on the maximum current and voltage of your application. A general rule of thumb is to choose a sense resistor value that limits the voltage across it to 0.5-1.5 V at the maximum current. You can use the formula Rsense = 0.5-1.5 V / Imax to calculate the sense resistor value.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value for CBOOT is 10-22 nF, but it can be adjusted based on the specific application requirements and the voltage rating of the capacitor.
  • The L6208PD has built-in overcurrent protection, but you can also add external protection circuits such as fuses, TVS diodes, or overvoltage protection ICs to protect the device from overvoltage conditions. Additionally, you can use a current sense resistor and a comparator to detect overcurrent conditions and shut down the device if necessary.
  • The maximum junction temperature of the L6208PD is 150°C. It's essential to ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6208PD Overview

Use the download button to access the L6208PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6208, or try a keyword search, such as Motion Control Electronics
