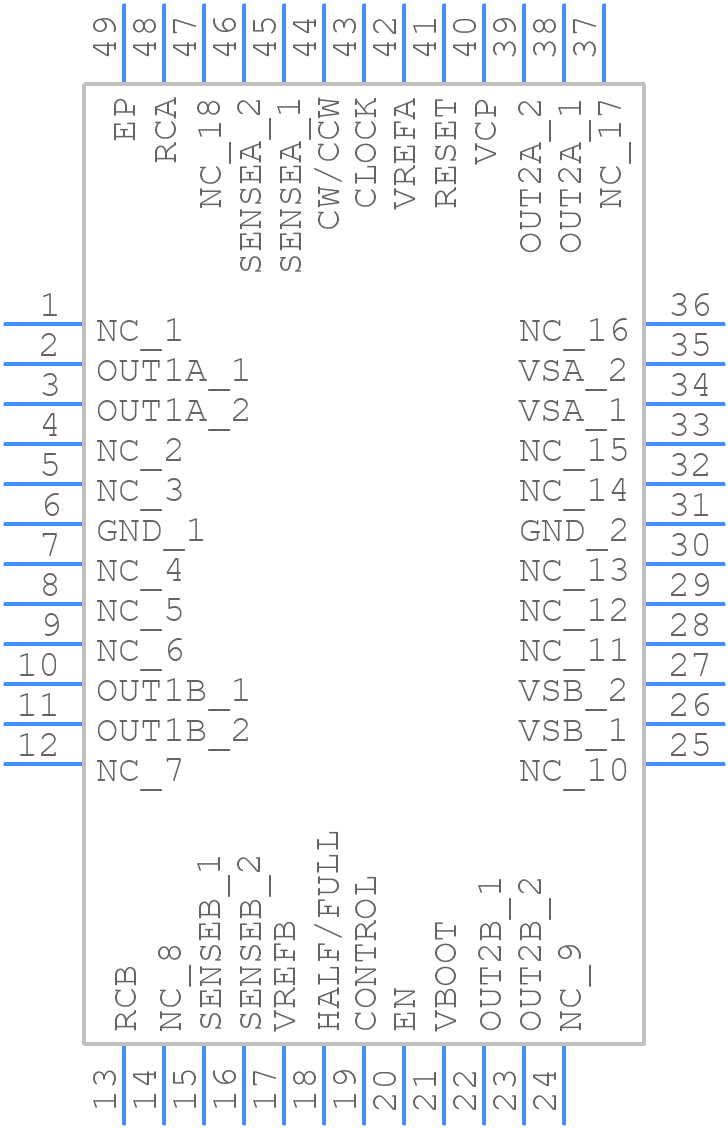

L6208QTR - STMicroelectronics

L6208QTR Details

• Manufacturer Part Number:

  L6208QTR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  VFQFPN-48

• Pin Count:

  48

• Manufacturer Package Code:

  VFQFPN

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  30 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6

• Analog IC - Other Type:

  STEPPER MOTOR CONTROLLER

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  10 mA

• Supply Voltage-Max (Vsup):

  52 V

• Supply Voltage-Min (Vsup):

  8 V

• Supply Voltage-Nom (Vsup):

  48 V

• Surface Mount:

  YES

• Technology:

  BCDMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7 mm
