L6219DSA13TR - STMicroelectronics

Description: Stepper Motor Controller 24-Pin SO T/R

Download L6219DSA13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

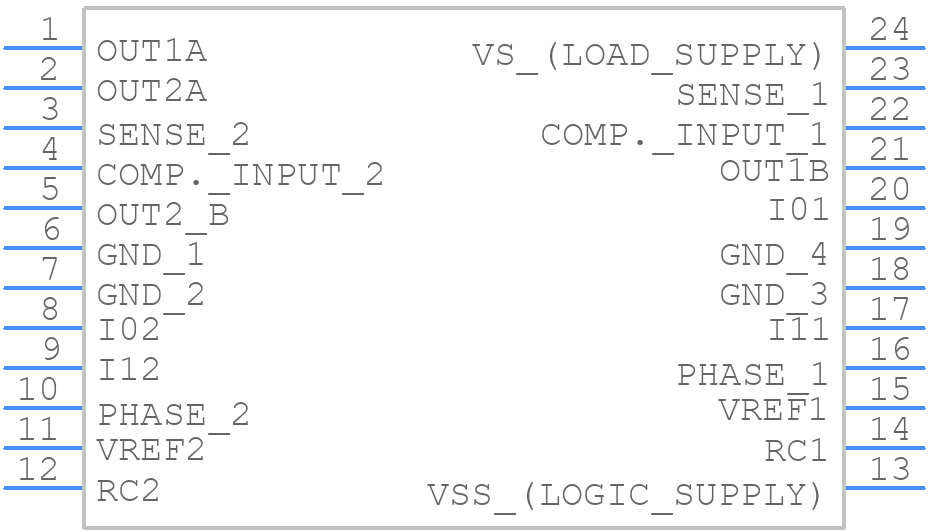

Symbol
L6219DSA13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6219DSA13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO24
click to zoom
3D Models
L6219DSA13TR - STMicroelectronics - 3D model - Small Outline Packages - SO24
click to zoom

L6219DSA13TR Details

  • Manufacturer Part Number:

    L6219DSA13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

L6219DSA13TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the L6219DSA13TR is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • To ensure proper thermal management, it's essential to provide a good thermal path from the device to a heat sink or the PCB. Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and ensure the heat sink is properly attached to the device. Additionally, consider using thermal vias and a thermal pad on the PCB to improve heat dissipation.
  • For optimal performance and thermal management, it's recommended to follow a 4-layer PCB stack-up with a dedicated power plane, a dedicated ground plane, and two signal layers. Keep the power traces as short and wide as possible, and use a solid ground plane to reduce electromagnetic interference (EMI).
  • To handle the high current output of the L6219DSA13TR, use a PCB with a sufficient copper thickness (at least 2 oz) and a wide enough trace width (at least 1 mm) to minimize voltage drops and heat generation. Additionally, consider using a current sense resistor and a fuse or a PTC (Positive Temperature Coefficient) thermistor to protect the device and the PCB from overcurrent conditions.
  • To minimize EMI, use a shielded enclosure, and ensure the PCB is properly grounded. Keep the power traces and signal traces as short as possible, and use a common-mode choke or a ferrite bead to filter out high-frequency noise. Additionally, consider using a snubber network or a damping resistor to reduce ringing and oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6219DSA13TR Overview

Use the download button to access the L6219DSA13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6219, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
