- Part Number L6258E
- Manufacturer STMicroelectronics
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSO-36
- Released Date Dec 9, 2021
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L6258E Details
-
Manufacturer Part Number:
L6258E
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, SOP-36
-
Pin Count:
36
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
L6258E Frequently Asked Questions (FAQs)
-
The L6258E can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
-
The L6258E requires a proper power-up sequence, including a slow ramp-up of the supply voltage (VCC) to ensure the internal voltage regulators are enabled correctly. A minimum of 10ms delay is recommended between power-on and the first valid clock signal.
-
STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed close to the device, and the layout should be symmetrical to minimize radiation.
-
STMicroelectronics provides a range of tools and resources, including the L6258E evaluation board, application notes, and technical support. Engineers can also use oscilloscopes and logic analyzers to debug the device and identify issues.
-
Yes, engineers should follow STMicroelectronics' guidelines for using the L6258E in high-reliability or safety-critical applications, including implementing redundant systems, error detection and correction mechanisms, and adhering to relevant industry standards and regulations.
Trust Checks
Expert Contribution
System Verified
Community Approved
L6258E Overview

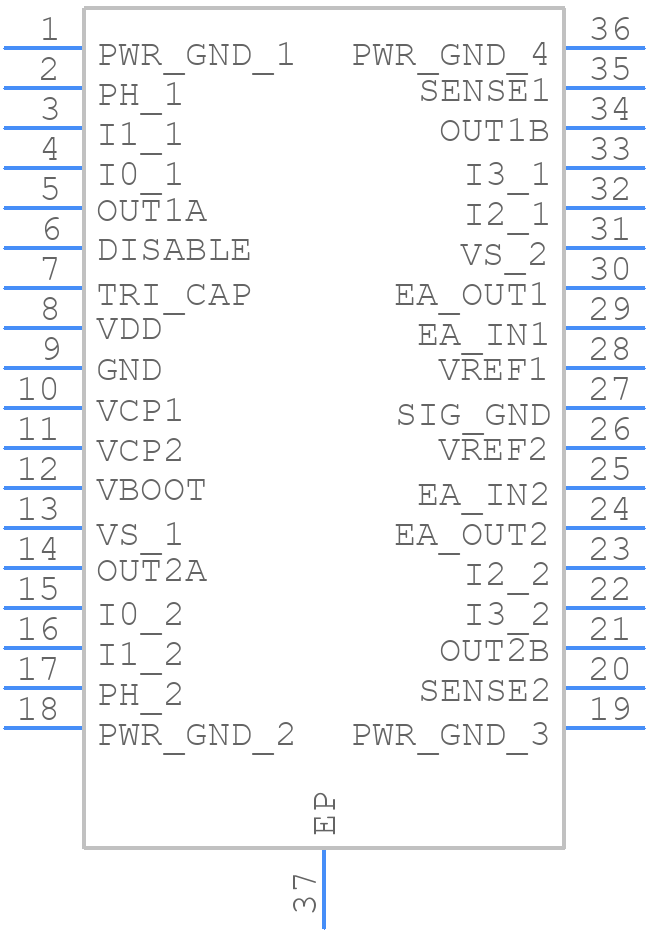

Use the download button to access the L6258E schematic symbol, PCB footprint, and 3D model.
