L6384E - STMicroelectronics

Description: L6384E, Dual MOSFET Power Driver 0.65A Half Bridge, Maximum of 16.6 V, 8-Pin PDIP

Download L6384E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

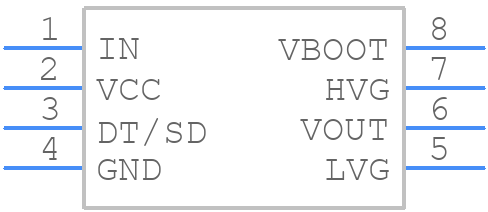

Symbol
L6384E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6384E - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8-ren3
click to zoom
3D Models
L6384E - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-8-ren3
click to zoom

L6384E Details

  • Manufacturer Part Number:

    L6384E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.65 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    16.6 V

  • Supply Voltage-Nom:

    14.4 V

  • Supply Voltage1-Max:

    600 V

  • Surface Mount:

    NO

  • Technology:

    BCD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    7.62 mm

L6384E Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the bootstrap capacitor is 15V, as specified in the datasheet. However, it's recommended to keep it below 12V to ensure reliable operation.
  • The minimum input capacitance required can be calculated using the formula: Cin(min) = (Vin * Iin) / (fsw * ΔVin), where Vin is the input voltage, Iin is the input current, fsw is the switching frequency, and ΔVin is the input voltage ripple.
  • The SD (Shutdown) pin is used to disable the L6384E. When the SD pin is pulled low, the device enters a low-power standby mode, reducing the quiescent current. To use it, simply connect the SD pin to a logic signal that can pull it low when you want to shut down the device.
  • The bootstrap resistor (RBOOT) and capacitor (CBOOT) values depend on the specific application and the voltage rating of the bootstrap capacitor. A good starting point is to use RBOOT = 1kΩ and CBOOT = 100nF, and then adjust them based on the device's operating conditions and the desired switching frequency.
  • The maximum operating junction temperature for the L6384E is 150°C. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and to prevent thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6384E Overview

Use the download button to access the L6384E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6384, or try a keyword search, such as MOSFET Drivers
