L6472H - STMicroelectronics

Description: L6472H, Stepper Motor Controller, Bipolar Stepping Motor, 512kHz 8 → 45 V, 28-Pin TSSOP

Download L6472H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

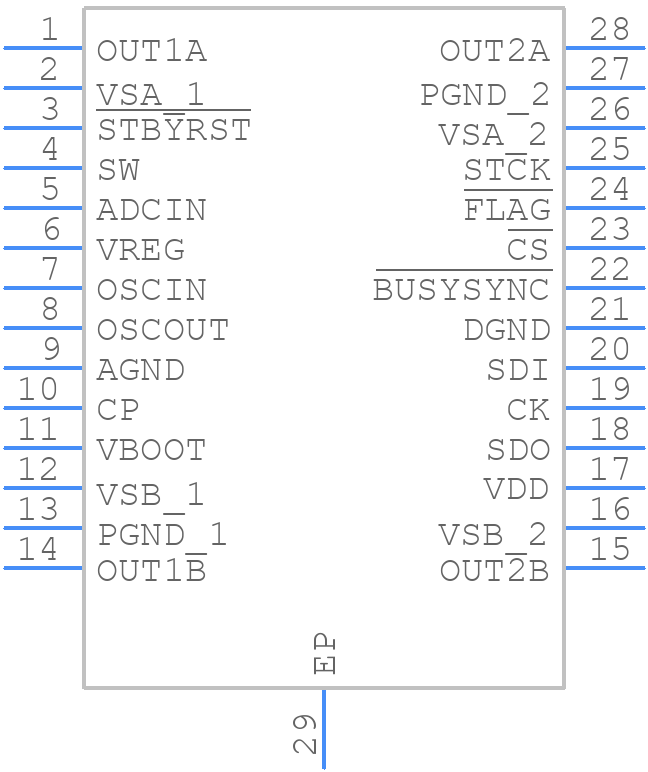

Symbol
L6472H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6472H - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP28_1
click to zoom
3D Models
L6472H - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP28_1
click to zoom

L6472H Details

  • Manufacturer Part Number:

    L6472H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, HTSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5 VOLT

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.65 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    36 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

L6472H Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 45V, but it's recommended to keep it below 40V for reliable operation.
  • The value of R Sense depends on the desired current limit and the sense voltage. A good starting point is to use the formula: R Sense = (Sense Voltage) / (Current Limit). For example, for a 1A current limit and 0.5V sense voltage, R Sense would be 0.5V/1A = 0.5 ohms.
  • The ENN pin is an active-low enable input that allows the user to enable or disable the L6472H. When ENN is low, the device is enabled, and when ENN is high, the device is disabled. This pin can be used to implement a shutdown function or to reduce power consumption when the motor is not in use.
  • To configure the L6472H for a unipolar stepper motor, connect the motor coils between the OUT1 and OUT2 pins, and the VM pin to the motor power supply. Set the DIR pin to control the direction of rotation, and use the STEP pin to control the step sequence. The L6472H will automatically generate the necessary phase currents to drive the motor.
  • The maximum frequency of the STEP input is 100 kHz. The STEP frequency determines the motor speed, with higher frequencies resulting in faster motor rotation. However, increasing the STEP frequency also increases the motor current and heat generation, which can affect motor performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6472H Overview

Use the download button to access the L6472H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6472, or try a keyword search, such as Motion Control Electronics
