L6472HTR - STMicroelectronics

Description: Fully integrated microstepping motor driver with motion engine and SPI

Download L6472HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

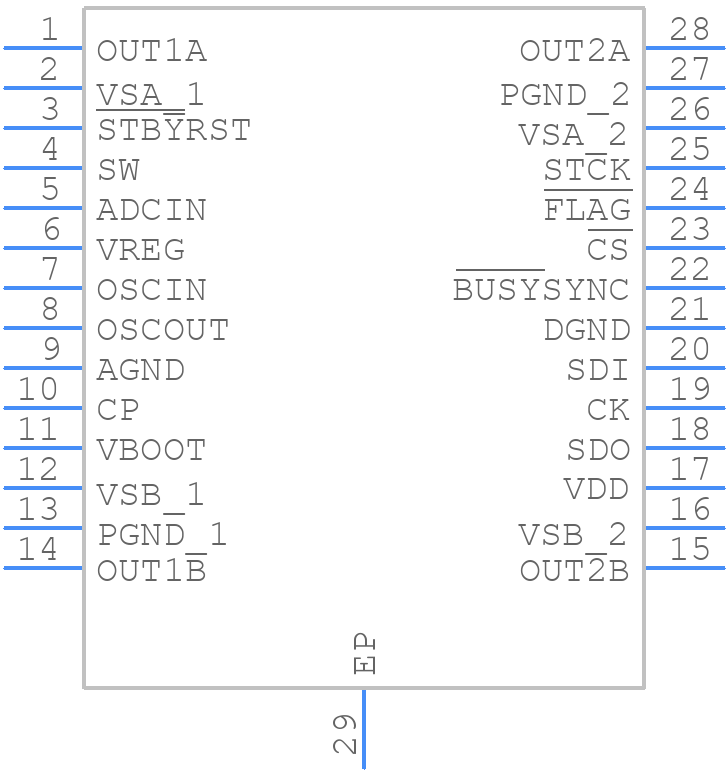

L6472HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6472HTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP28--0
click to zoom
3D Models
L6472HTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP28--0
click to zoom

L6472HTR Details

  • Manufacturer Part Number:

    L6472HTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, HTSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5 VOLT

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.65 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    36 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

L6472HTR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 45V, but it's recommended to keep it below 40V for reliable operation.
  • The value of the current sense resistors (R Sense) depends on the maximum current you want to sense. A good starting point is to use a value between 0.1 ohm and 1 ohm. You can use the formula: R Sense = (VREF / 2) / Imax, where VREF is the reference voltage (typically 2.5V) and Imax is the maximum current you want to sense.
  • The ENN pin is an active-low enable input that allows you to enable or disable the L6472HTR. When ENN is low, the device is enabled, and when it's high, the device is disabled. You can use this pin to shut down the device when not in use to reduce power consumption.
  • To configure the L6472HTR for microstepping mode, you need to set the M0, M1, and M2 pins accordingly. For example, for 16 microsteps, set M0=0, M1=1, and M2=0. You can refer to the datasheet for the complete truth table for microstepping mode configuration.
  • The maximum frequency of the STEP input signal is 250 kHz. However, the actual frequency limit may be lower depending on the specific application and motor characteristics.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6472HTR Overview

Use the download button to access the L6472HTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6472, or try a keyword search, such as Motion Control Electronics
