L77HDAH26SOL2RM5 - Amphenol

Description: Dsub, Stamped Signal 3A, High Density, Straight PCB Thru Hole, 26 Socket, Flash Gold, 4-40 Rear Insert, 4-40 Threaded Standoff 6.0mm (0.236"), With Boardlock 4.2mm (0.165")

Download L77HDAH26SOL2RM5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L77HDAH26SOL2RM5 - Amphenol - PCB symbol
click to zoom
PCB Footprints

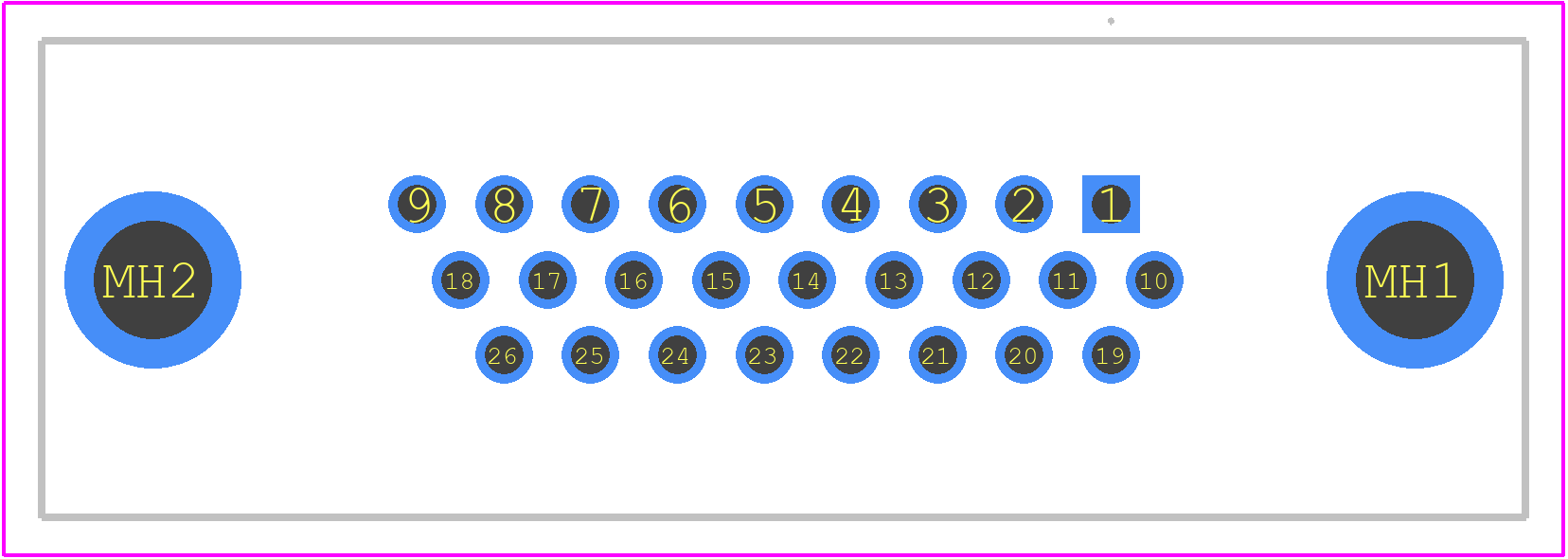

L77HDAH26SOL2RM5 - Amphenol PCB footprint - Other - Other - L77HDAH26SOL2RM5-2
click to zoom
3D Models
L77HDAH26SOL2RM5 - Amphenol - 3D model - Other - L77HDAH26SOL2RM5-2
click to zoom

L77HDAH26SOL2RM5 Details

  • Manufacturer Part Number:

    L77HDAH26SOL2RM5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: MIL C24308

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

L77HDAH26SOL2RM5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in) for the screw locks on the L77HDAH26SOL2RM5 connector.
  • Yes, the L77HDAH26SOL2RM5 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the L77HDAH26SOL2RM5 connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 150°C (-133°F to 302°F) and humidity up to 95% RH.
  • The L77HDAH26SOL2RM5 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the L77HDAH26SOL2RM5 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.
