L77HDCH62SOL2RM5 - Amphenol

Description: D-Sub High Density Connectors D-SUB HIGH DENSITY

Download L77HDCH62SOL2RM5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L77HDCH62SOL2RM5 - Amphenol - PCB symbol
click to zoom
PCB Footprints

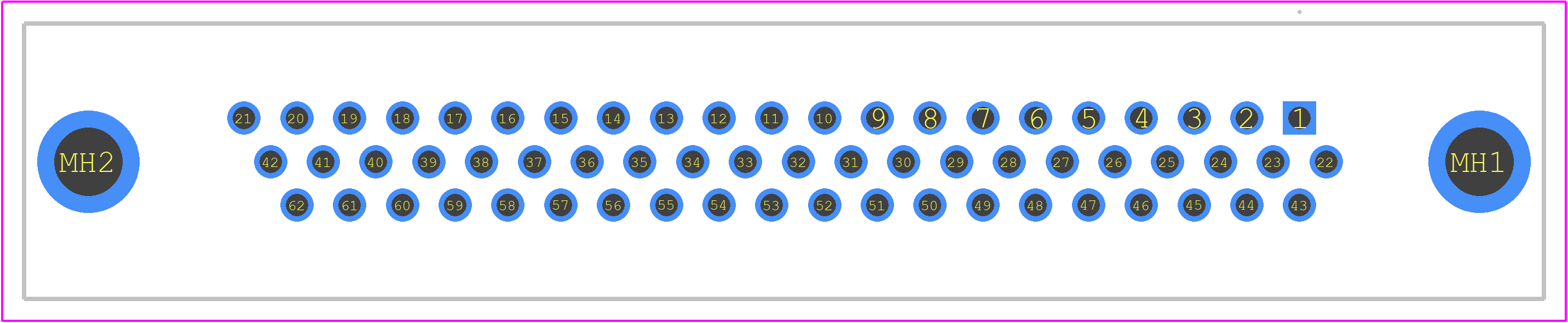

L77HDCH62SOL2RM5 - Amphenol PCB footprint - Other - Other - L77HDCH62SOL2RM5-1
click to zoom
3D Models
L77HDCH62SOL2RM5 - Amphenol - 3D model - Other - L77HDCH62SOL2RM5-1
click to zoom

L77HDCH62SOL2RM5 Details

  • Manufacturer Part Number:

    L77HDCH62SOL2RM5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: MIL C24308

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    62

  • UL Flammability Code:

    94V-0
