L77TSEH09SOL2RM5C309 - Amphenol

Description: D-Sub Standard Connectors D-SUB

Download L77TSEH09SOL2RM5C309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L77TSEH09SOL2RM5C309 - Amphenol - PCB symbol
click to zoom
PCB Footprints

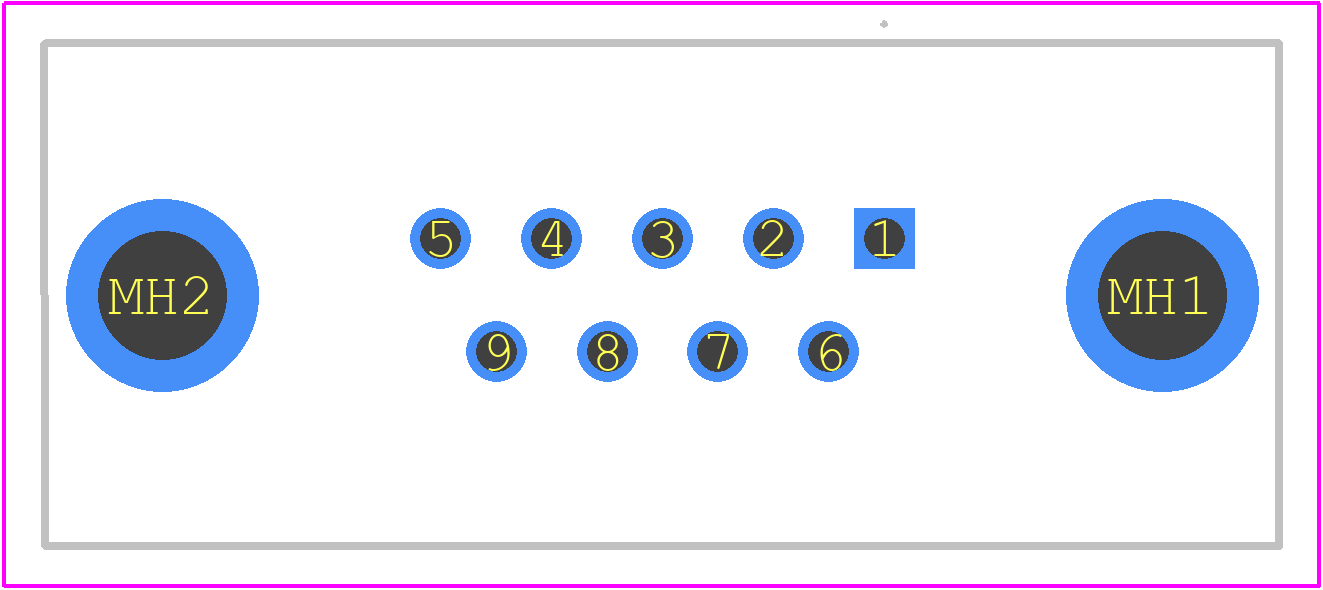

L77TSEH09SOL2RM5C309 - Amphenol PCB footprint - Other - Other - L77TSEH09SOL2RM5C309-2
click to zoom
3D Models
L77TSEH09SOL2RM5C309 - Amphenol - 3D model - Other - L77TSEH09SOL2RM5C309-2
click to zoom

L77TSEH09SOL2RM5C309 Details

  • Manufacturer Part Number:

    L77TSEH09SOL2RM5C309

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-C-24308

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL/TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

L77TSEH09SOL2RM5C309 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Amphenol application notes.
  • Yes, the L77TSEH09SOL2RM5C309 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
  • The operating temperature range of the L77TSEH09SOL2RM5C309 is -40°C to 125°C, as specified in the datasheet.
  • Yes, the L77TSEH09SOL2RM5C309 is designed to operate in harsh environments, with a rating of IP67 (dust and water resistance) and resistance to salt spray and humidity, as per IEC 60068-2-52 and IEC 60068-2-78.
  • The mating cycle life of the L77TSEH09SOL2RM5C309 is 500 cycles, as specified in the datasheet.
